FORMWORK & SHORING SYSTEMS
Heavy Duty Panel Formwork System
Large panel formwork resistant to high concrete pressure.
- 25 components
- 156 size options
HPF

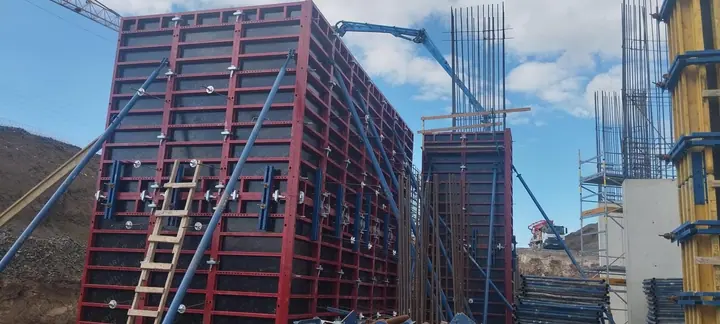

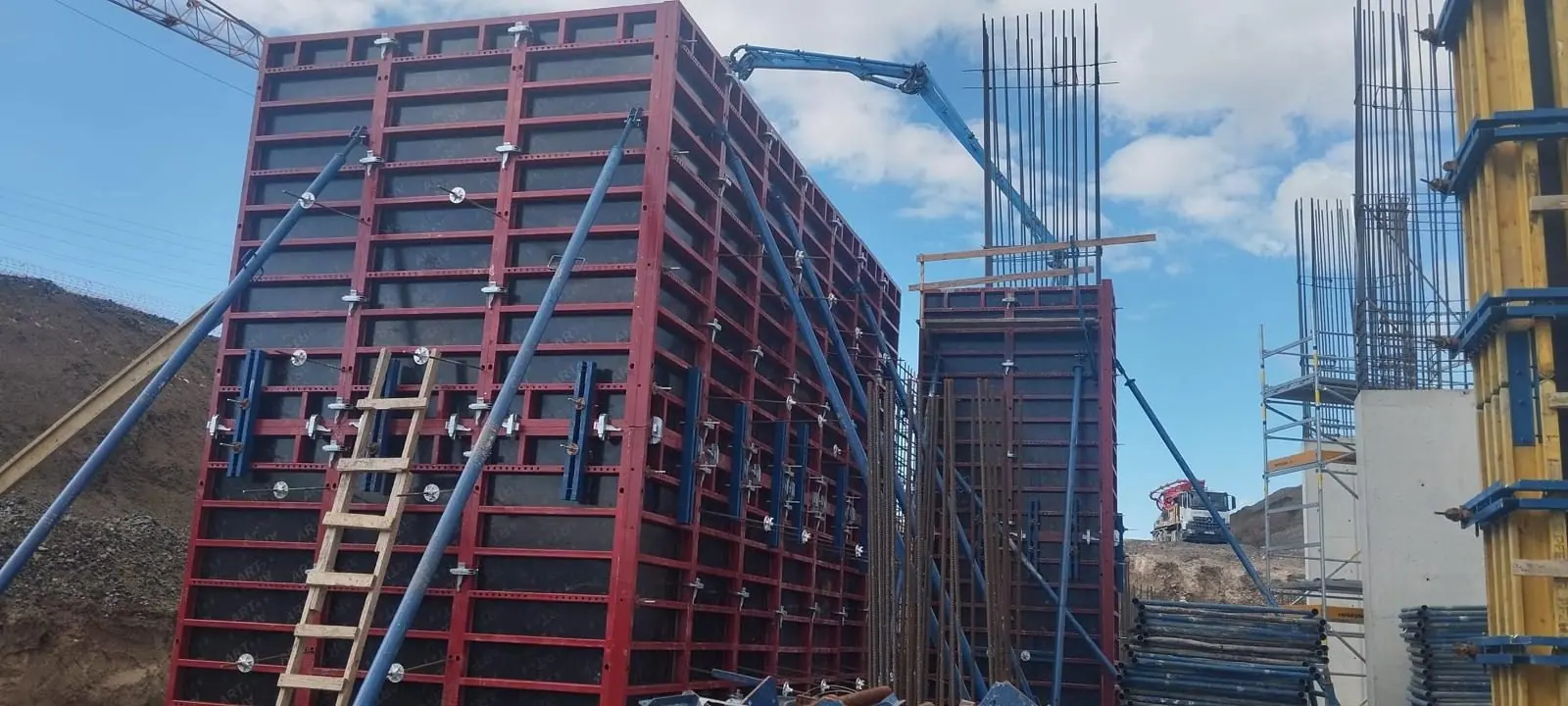

About the Heavy Duty Panel Formwork System
BLC Heavy Duty Panel Formwork consists of large panels up to 330 cm high, resistant to high fresh concrete pressure. The stripping corner allows easy dismantling; together with steel-faced circular column panels and large push-pull props it is used for high walls, columns and bridge piers.
Key features
- Large panels up to 330 cm
- Easy stripping with stripping corner
- Ø30-Ø120 cm circular column formwork
- Telescopic push-pull prop Ø102
Heavy Duty Panel Formwork System
System components
Click a component for its size and weight table.

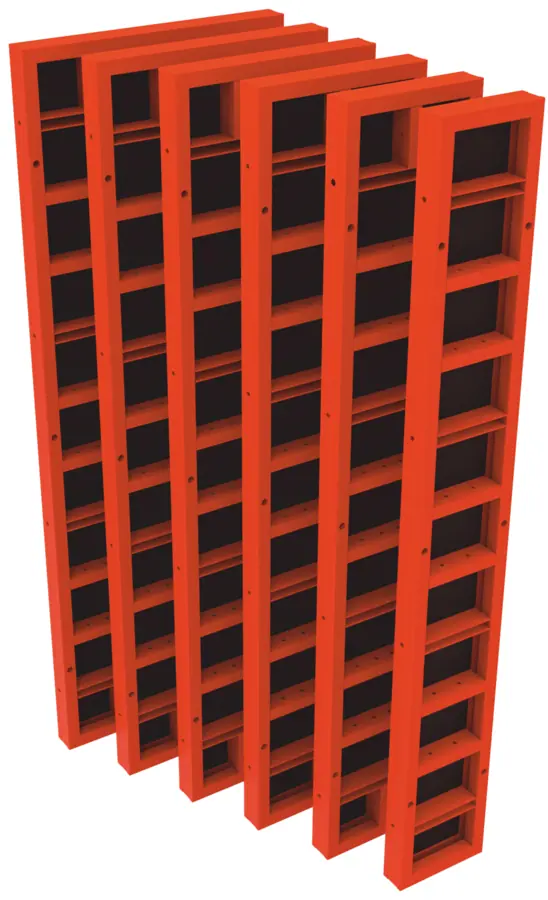

Heavy Duty Universal Panel
45×90 … 120×330 · 36.5–214.6 kg

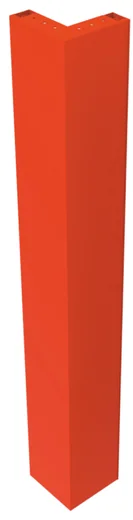

Heavy Duty Internal Corner
30×30×90 … 50×50×330 · 36–174.1 kg

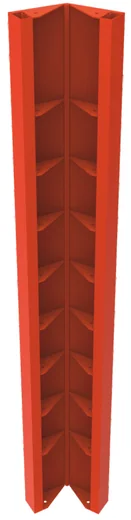

Heavy Duty Articulated Internal Corner
30×30×90 … 50×50×330 · 40.5–193 kg
Heavy Duty External Corner
90–330 cm · 10.8–39.6 kg
Stripping Corner
40×40×330 · 250 kg

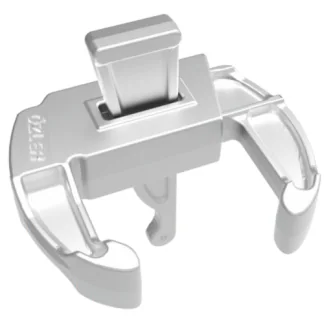

Heavy Duty Panel Lock - Standard
3.3 kg

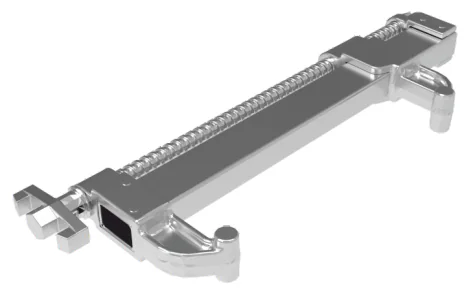

Heavy Duty Panel Lock - Adjustable
5.4 kg

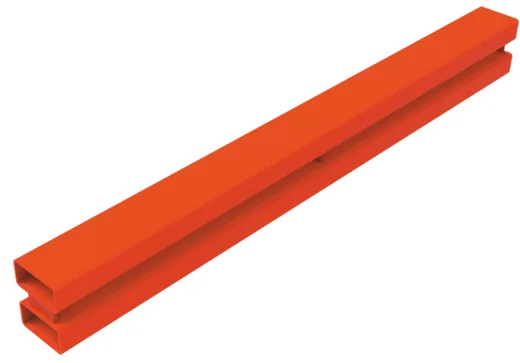

Panel Formwork Support Waler
50–150 cm · 4.9–15.2 kg

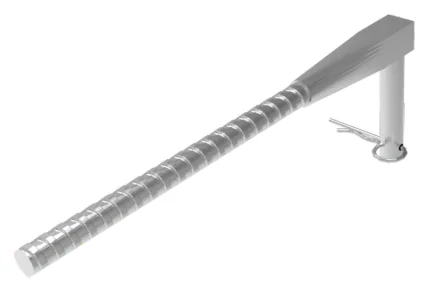

Support Waler Connector
0.7 kg

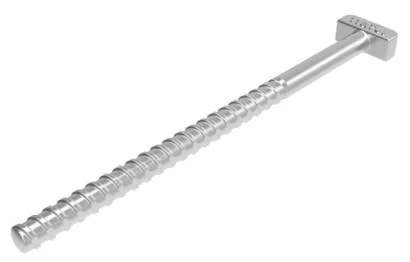

Corner Connector
0.6 kg

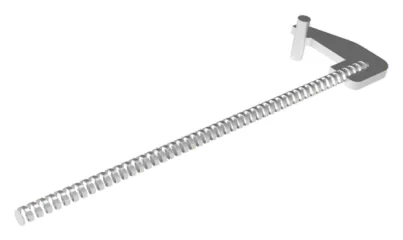

End Plate Connector
1.4 kg

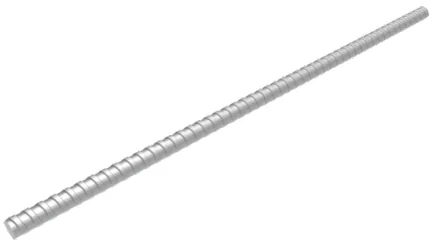

Tie-Rod Ø15/17
50–600 cm · 0.75–9 kg
Tie-Rod Nut Ø90
0.5 kg
Square Nut
120×120 · 1.25 kg

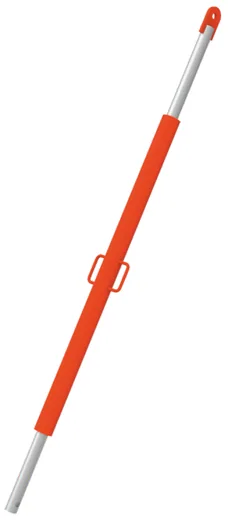

Push Pull Prop Ø60
60–300 cm · 8.03–23 kg

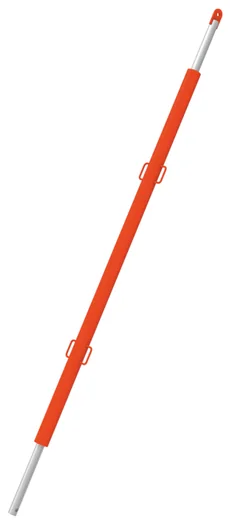

Push Pull Prop Ø76
300–600 cm · 45–66.7 kg

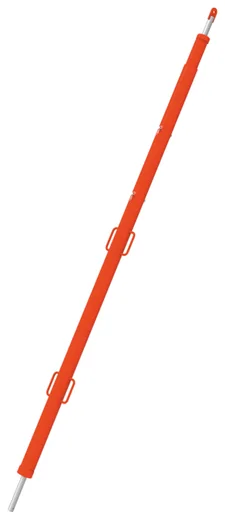

Telescopic Push Pull Prop Ø102
650-1050 · 148 kg

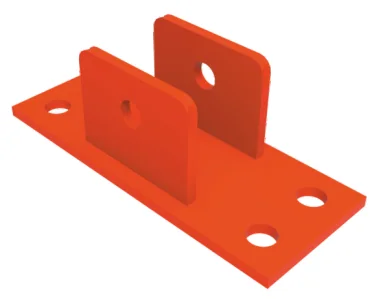

Base Plate Single
1.7 kg

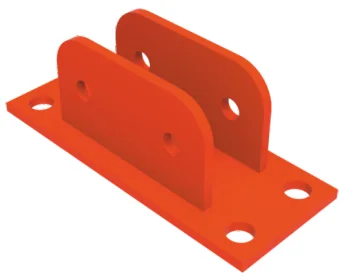

Base Plate Double
2.7 kg

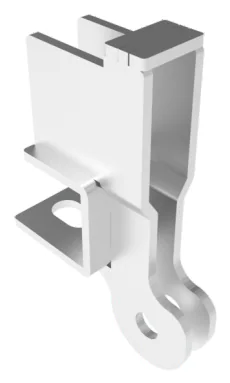

Panel Push Pull Prop Head
3.2 kg

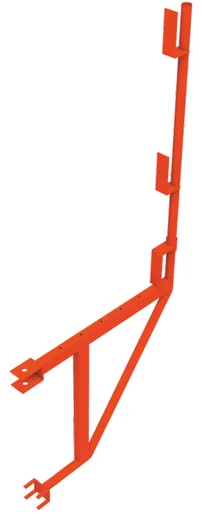

Heavy Duty Formwork Bracket
11 kg

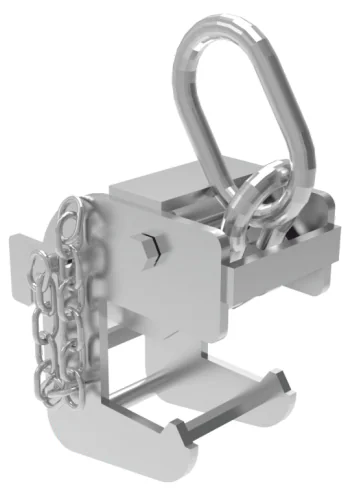

Heavy Duty Crane Hook
8.3 kg

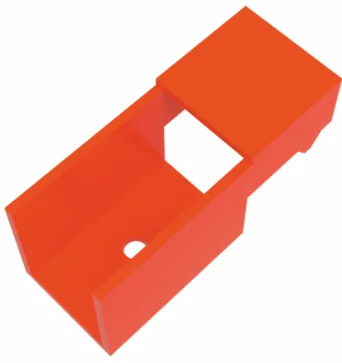

Bottom Fixer
4 kg

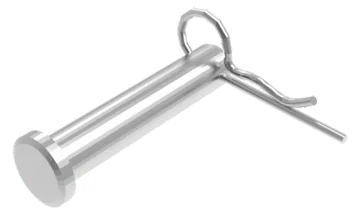

Pin and Split Pin
16×80 · 0.15 kg

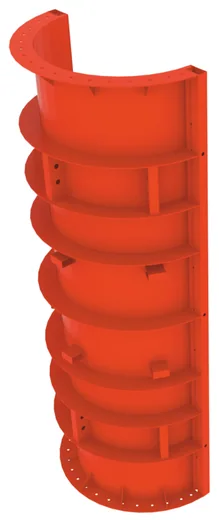

Circular Column Panel (Steel Faced)
Ø30×50 … Ø120×300 · 19–291 kg
Heavy Duty Panel Formwork System
Erection sequence

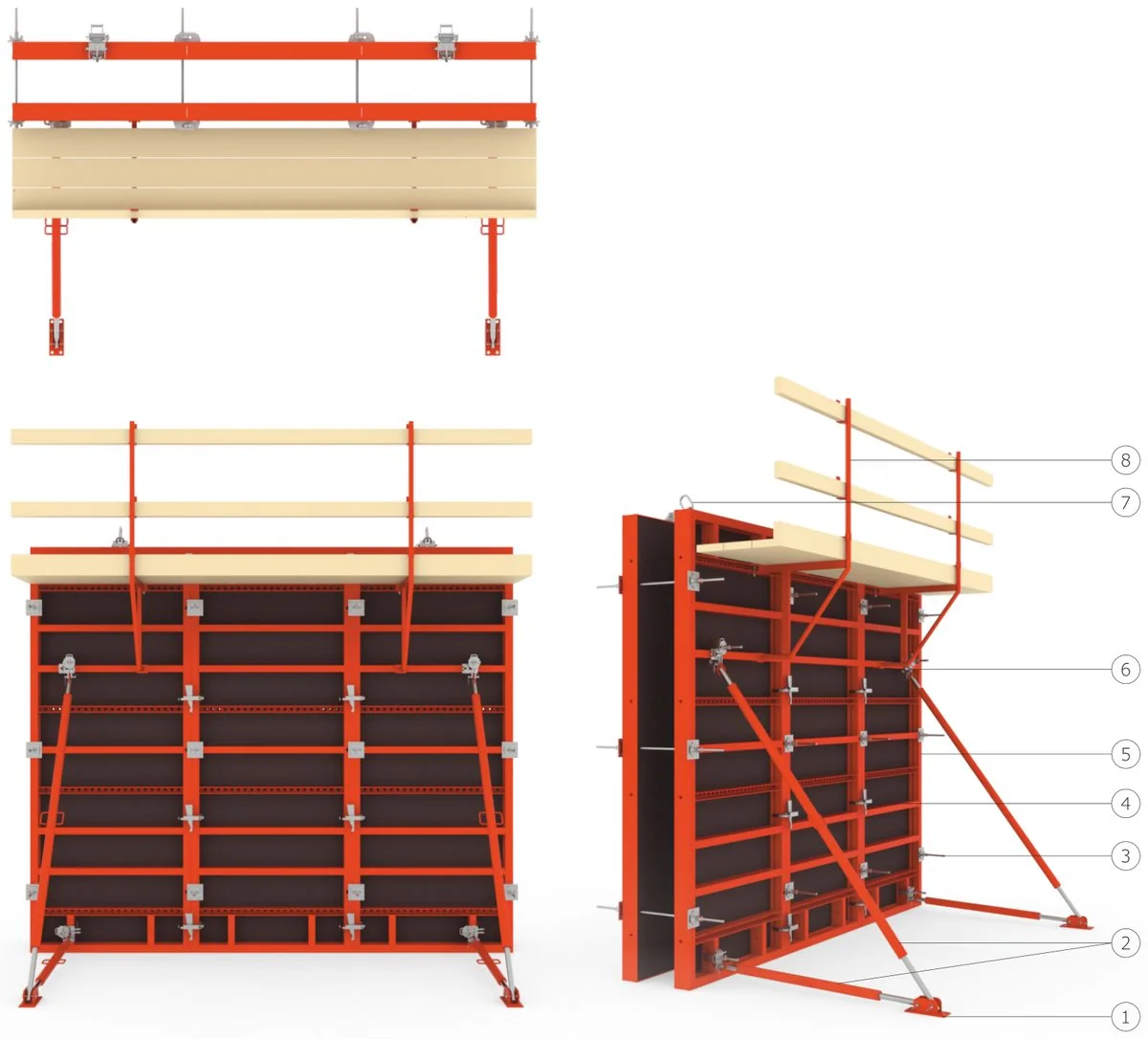

General view
- Base Plate Double
- Push-Pull Prop
- Tie-Rod + Nut + Plate
- Panel Lock
- Heavy Duty Panel
- Prop Head + Nut
- Crane Hook
- Working Bracket
- Panel faces are cleaned and release agent is applied.
- The first panel is lifted by crane into position and plumbed and fixed with push-pull props.
- Adjacent panels are joined with panel locks; inside and outside corners are used at the corners.
- After the reinforcement and services are placed, the opposite face is erected.
- Both faces are tied together with tie-rods, nuts and plates.
- Working brackets are fitted; guardrails and platform boards are installed.
- Dimensions and plumb are checked and concrete is poured.
- Once the concrete has gained sufficient strength, tie-rods are removed and the panels are stripped. Stripping corners are released to ease stripping at inside corners.
Application notes
- Erection, dismantling and modifications must only be carried out by trained, certified crews according to the approved design.
- Damaged, deformed or incomplete components must never be used.
- The ground must be level, firm and capable of carrying the loads.
- The system must be inspected by a competent person after erection, at regular intervals, after any modification and after adverse weather.
- Local regulations and occupational health & safety rules must be followed.
Catalogues
Heavy Duty Panel Formwork System catalogue
System introduction, size and weight tables of all components, erection sequence and technical data in a single PDF. Turkish / English.
Download catalogue (PDF) · 4.0 MB All catalogues
