FORMWORK & SHORING SYSTEMS
Telescopic Prop System
Adjustable slab props compliant with EN 1065.
- 6 components
- 18 size options
- EN 1065 Standard
- 300-500 cm Length
STS
About the Telescopic Prop System
BLC Telescopic Prop System consists of height-adjustable steel props used under slab formwork. EN 1065 class A and B props form a fast and safe slab support system together with tripods and four-way heads.
Key features
- EN 1065 class A and B props
- Adjustable lengths from 3.00 m to 5.00 m
- Easy erection with tripod
- Four-way head suitable for H20 beams
Telescopic Prop System
System components
Click a component for its size and weight table.
Telescopic Prop System
Erection sequence

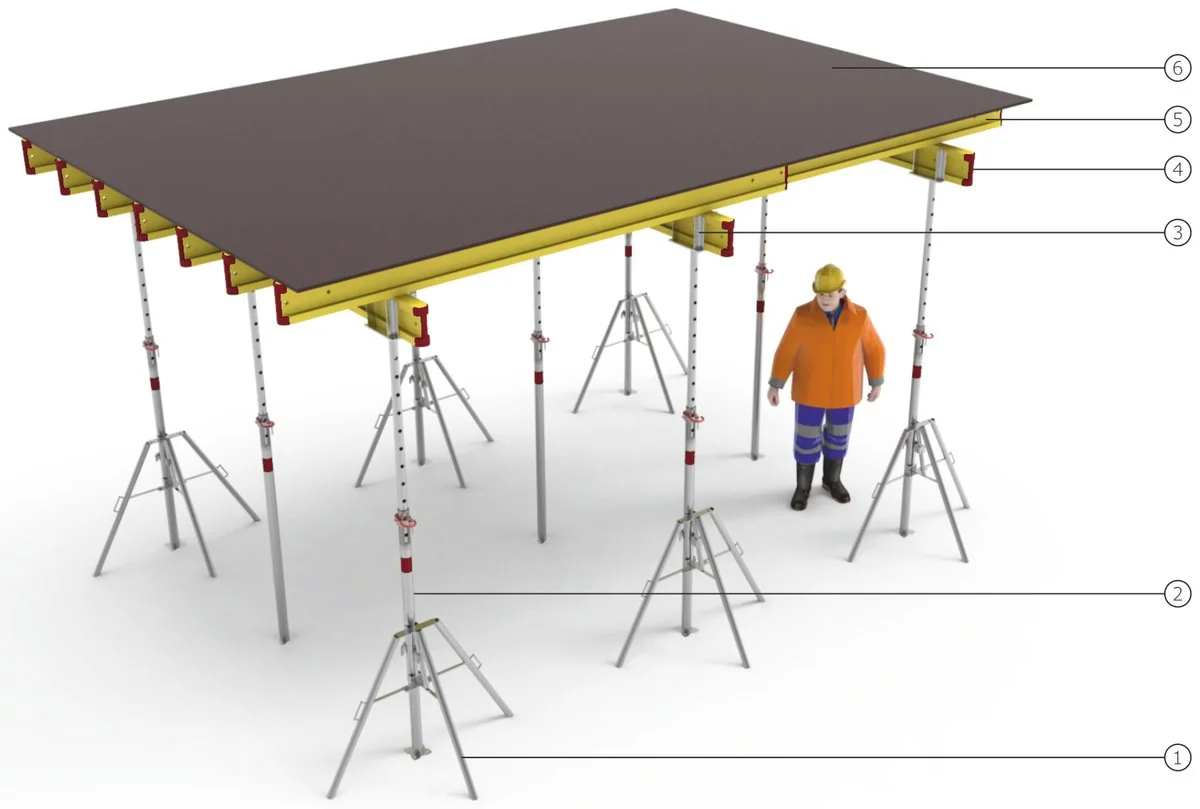

General view

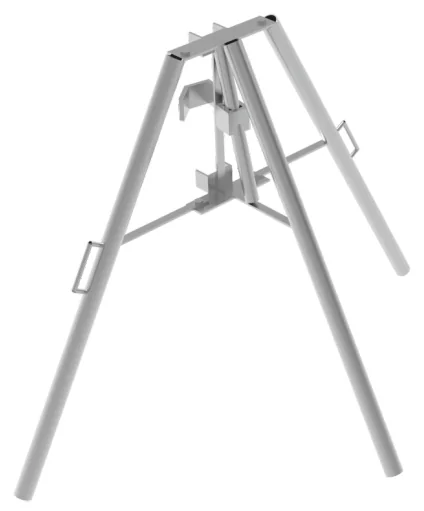

- Tripod
- Telescopic Prop

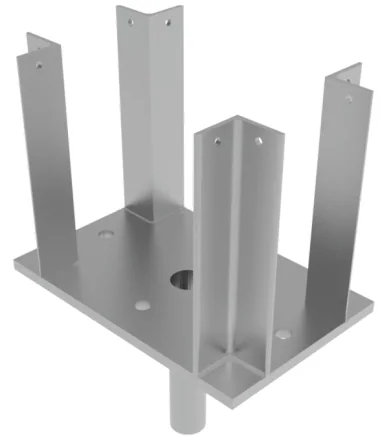

- Four-Way Head - H20
- Main Beam - H20
- Secondary Beam - H20
- Plywood
- Tripods are positioned according to the plan.
- Telescopic props are mounted on the tripods.
- Four-way heads are fitted on the props.
- Props are adjusted to the design height (coarse with the pin, fine with the nut).
- Main H20 beams are placed observing the overlaps.
- Secondary beams are placed at the design spacing.
- Intermediate props are added under the main beams as designed.
- The system is completed by laying the plywood.
Application notes
- EN 1065 class and permissible load must be selected according to the extended length.
- Erection, dismantling and modifications must only be carried out by trained, certified crews according to the approved design.
- Damaged, deformed or incomplete components must never be used.
- The ground must be level, firm and capable of carrying the loads.
- The system must be inspected by a competent person after erection, at regular intervals, after any modification and after adverse weather.
- Local regulations and occupational health & safety rules must be followed.
Catalogues
Telescopic Prop System catalogue
System introduction, size and weight tables of all components, erection sequence and technical data in a single PDF. Turkish / English.
Download catalogue (PDF) · 4.0 MB All catalogues
