Cup-Lock Scaffolding System
Fast and rigid shoring scaffold with cup-lock connections.
- 7 components
- 18 size options
CLS
About the Cup-Lock Scaffolding System
BLC Cup-Lock Scaffolding is a bolt-free system in which ledgers are locked to the standards with a single hammer blow thanks to the top and bottom cups. It is used as slab shoring together with H20 beams and head jacks, and can also be erected as facade or working scaffold.
Key features
- Cup connection locked in a single move
- No bolts, no loose parts
- Slab shoring and working scaffold
- Head jacks compatible with H20 beams
Cup-Lock Scaffolding System

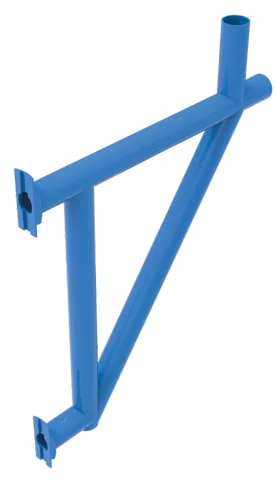

System components
Click a component for its size and weight table.
Cup-Lock Scaffolding System
Erection sequence

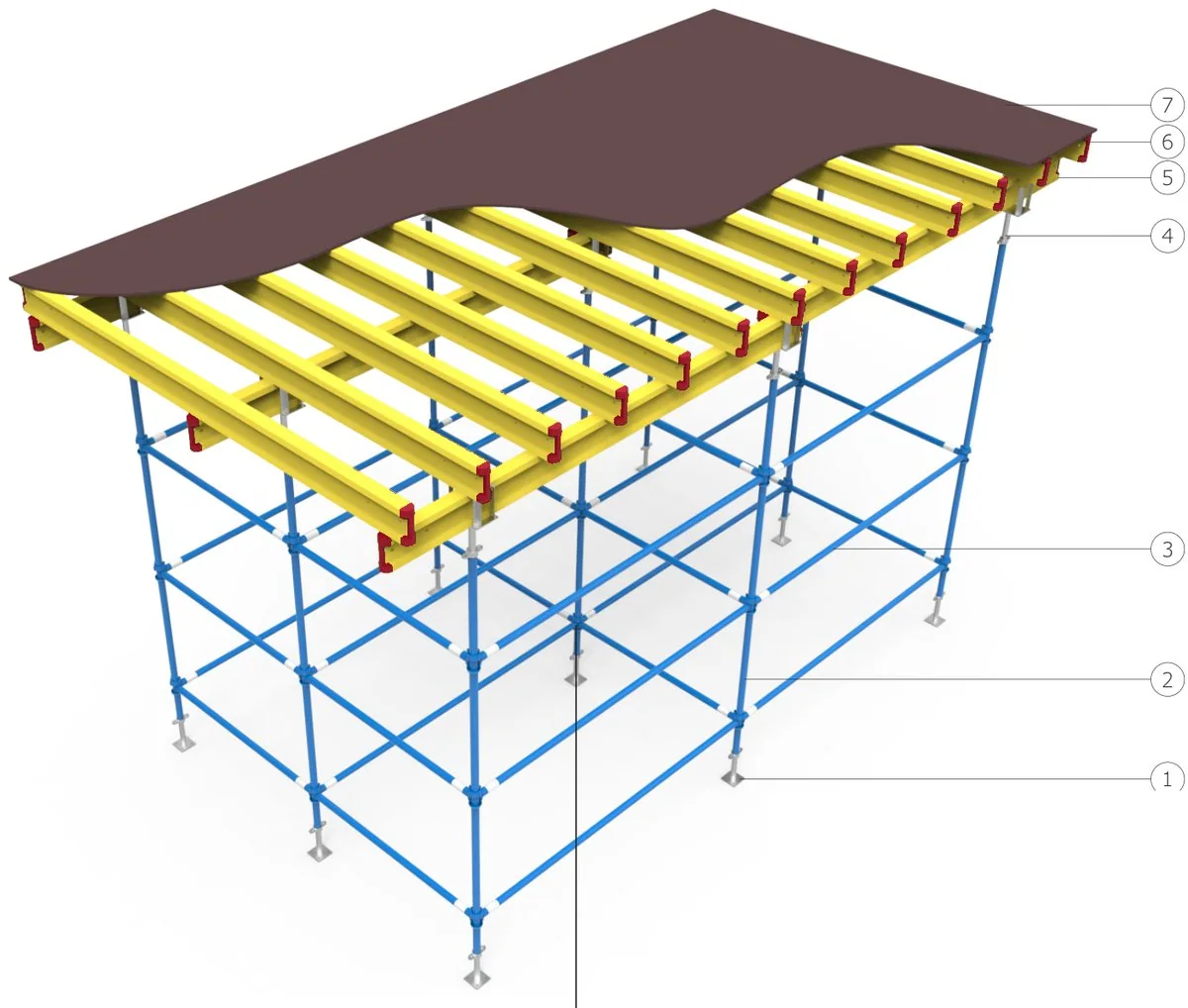

General view
- Base Jack Ø38

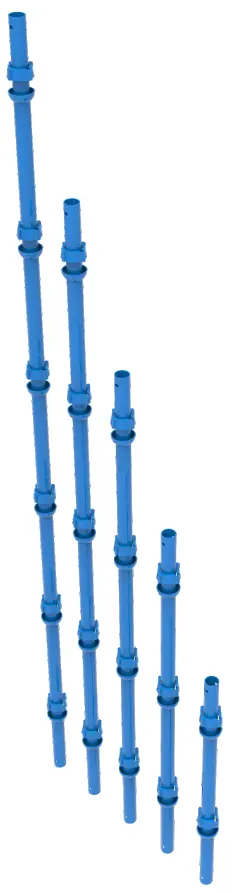

- Cup-Lock Standard

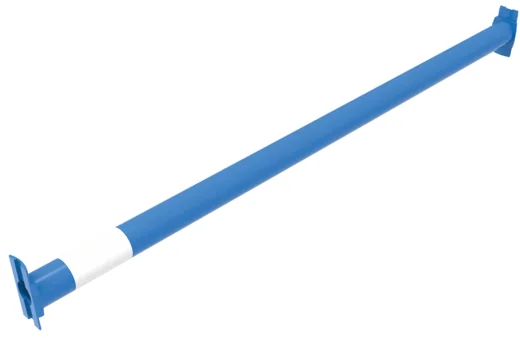

- Cup-Lock Ledger

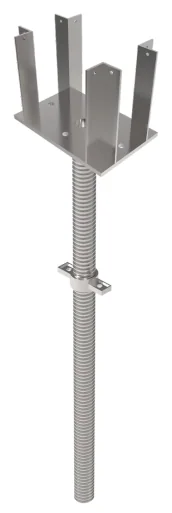

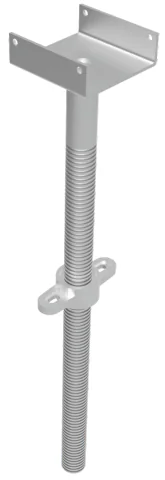

- H20 Head Jack Ø38
- Main Beam - H20
- Secondary Beam - H20
- Plywood
- Base jacks are placed at the grid spacing given in the design and their levels are set.
- Standards are set on the base jacks.
- Ledger blades are placed in the bottom cups; the top cup is lowered and locked with a hammer.
- The system is levelled and bracing is fitted where shown in the design.
- The required height is reached with spigot joints; each level is locked in the same way.
- H20 head jacks are fitted and adjusted to the formwork level.
- Main and secondary H20 beams are placed as designed.
- The formwork surface is completed with plywood.
Application notes
- Erection, dismantling and modifications must only be carried out by trained, certified crews according to the approved design.
- Damaged, deformed or incomplete components must never be used.
- The ground must be level, firm and capable of carrying the loads.
- The system must be inspected by a competent person after erection, at regular intervals, after any modification and after adverse weather.
- Local regulations and occupational health & safety rules must be followed.
Catalogues
Cup-Lock Scaffolding System catalogue
System introduction, size and weight tables of all components, erection sequence and technical data in a single PDF. Turkish / English.
Download catalogue (PDF) · 4.0 MB All catalogues
