Slab Panel Formwork System
Beamless slab formwork with headed props.
- 9 components
- 24 size options
SPF
About the Slab Panel Formwork System

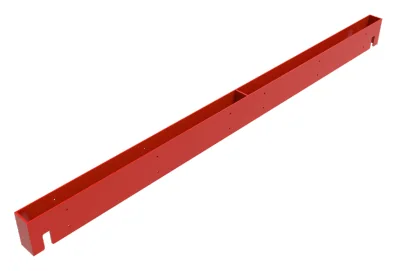

BLC Slab Panel Formwork is a beamless slab formwork in which aluminium panels sit directly on prop heads. Different panel sizes and compensation profiles adapt to any slab layout; with the re-shoring head the panels are stripped early while the slab remains supported.
Key features
- 30-120 × 90-150 cm aluminium panels
- Beamless, fast layout
- Early stripping with re-shoring head
- Erection from the ground with lifting component
Slab Panel Formwork System
System components
Click a component for its size and weight table.
Slab Panel Formwork System
Erection sequence

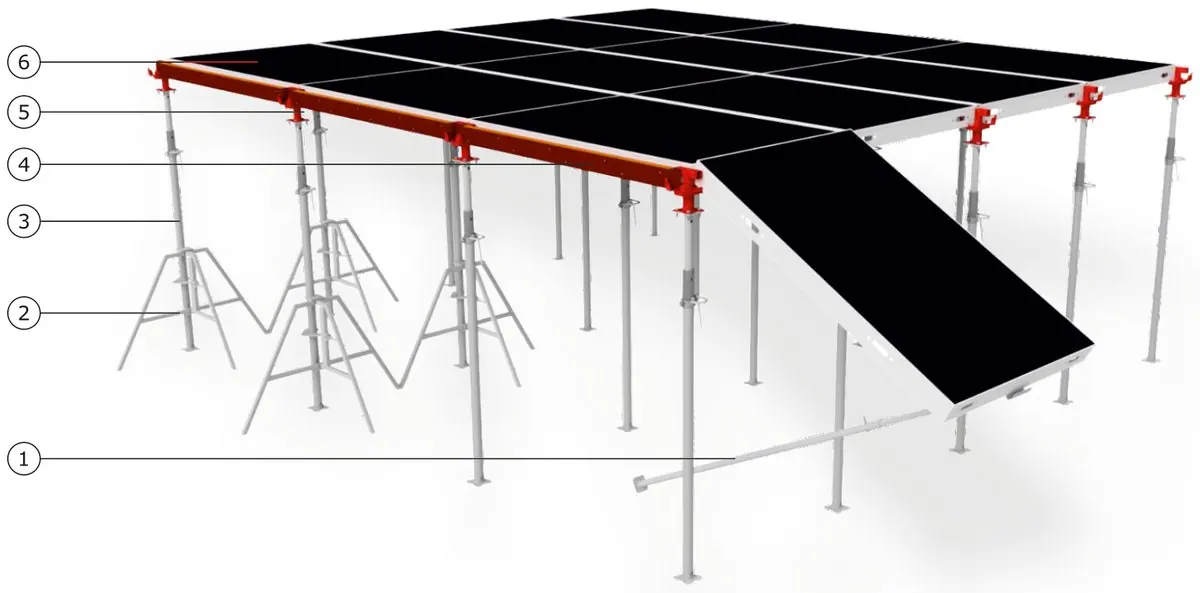

General view
- Panel Lifting Component

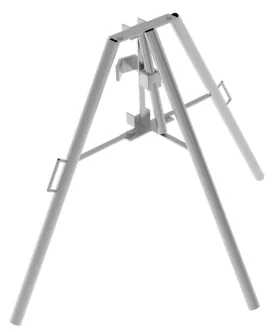

- Tripod
- Telescopic Prop
- Compensation Beam
- Drop Head

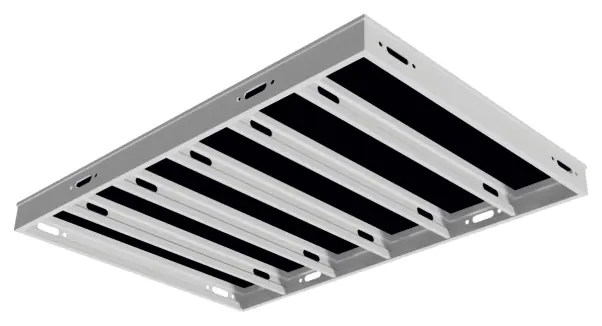

- Aluminium Panel
- Drop heads are bolted to the props with M10 bolts; the props are positioned with tripods.
- The first panel is set on the prop heads.
- The next panel is lifted from the ground with the lifting component.
- A prop is placed under the free corner of the lifted panel.
- The steps are repeated to complete the slab; compensation beams are used at the edges.
- During stripping the heads are lowered and panels removed while the props keep supporting the slab.
Application notes
- Erection, dismantling and modifications must only be carried out by trained, certified crews according to the approved design.
- Damaged, deformed or incomplete components must never be used.
- The ground must be level, firm and capable of carrying the loads.
- The system must be inspected by a competent person after erection, at regular intervals, after any modification and after adverse weather.
- Local regulations and occupational health & safety rules must be followed.
Catalogues
Slab Panel Formwork System catalogue
System introduction, size and weight tables of all components, erection sequence and technical data in a single PDF. Turkish / English.
