H20 Beam Formwork System
Flexible wall and column formwork with H20 timber beams.
- 27 components
- 70 size options
HBF
About the H20 Beam Formwork System
BLC H20 Beam Formwork is a wall and column formwork made of H20 timber beams and steel walers that can be adapted to any size. It is easily applied to different sections with column, corner and adjustable walers and can be designed for project-specific heights and concrete pressures.
Key features
- 190-590 cm H20 timber beams
- Steel wall, corner and column walers
- Adaptable to any size
- Safe pouring with props and brackets
H20 Beam Formwork System
System components
Click a component for its size and weight table.

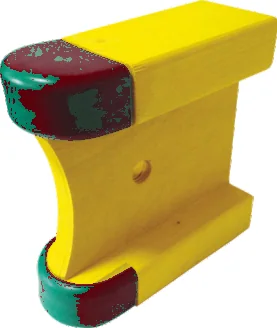

H20 Wooden Beam
190–590 cm · 8.6–26.6 kg

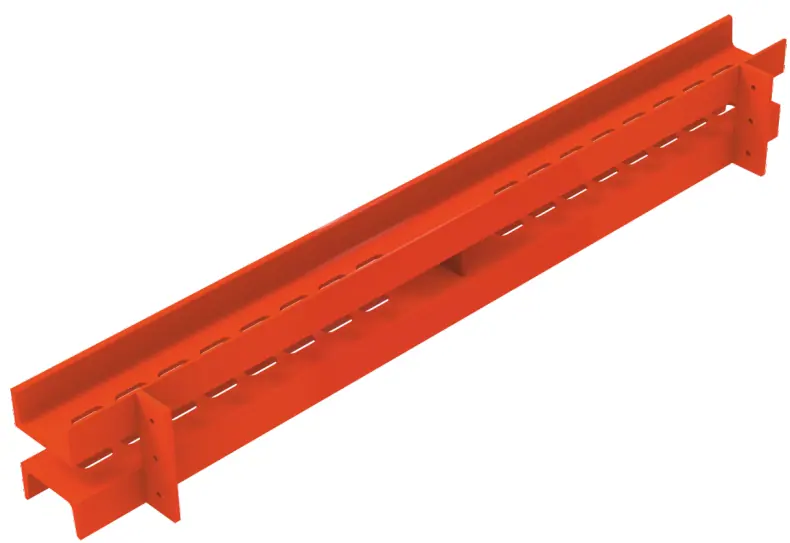

Steel Waler
70–395 cm · 15.4–86.9 kg

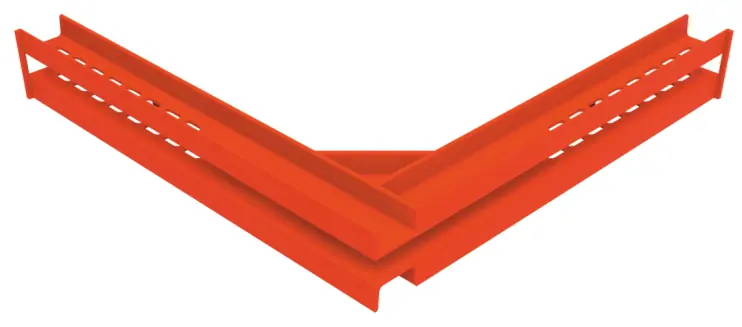

Corner Waler
19×16×45 · 17.6 kg
Column Waler
70×80 · 37.4 kg

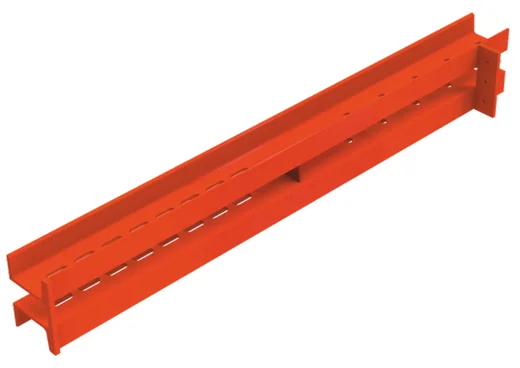

Adjustable Column Waler
95–195 cm · 22–42.9 kg

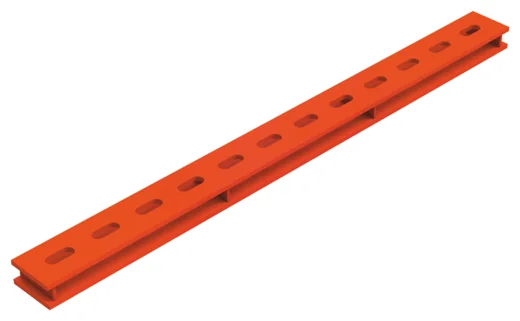

Waler Coupler
49–149 cm · 5.1–13.5 kg

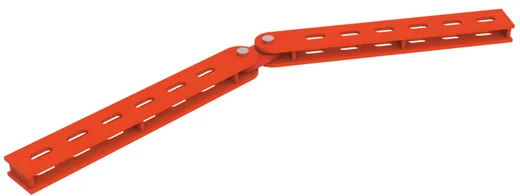

Articulated Waler Coupler
120 cm · 11 kg

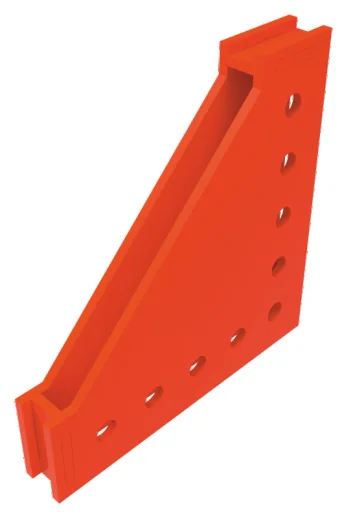

Corner Coupler - K
10.6 kg

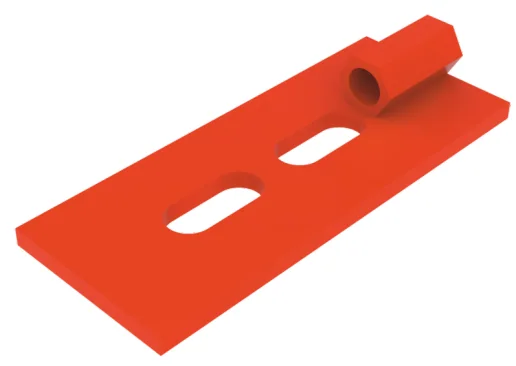

End Plate
0.9 kg

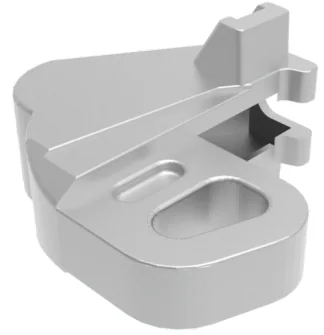

Corner Connector
2.6 kg
Waler Wedge
0.8 kg
H20 Clips
0.6 kg

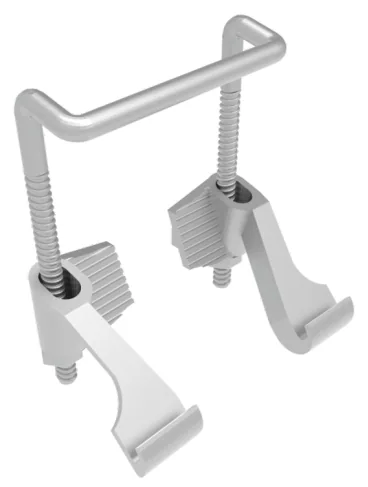

H20 Hook Set
0.9 kg

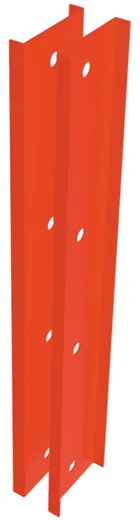

H20-H20 Extension
6.4 kg

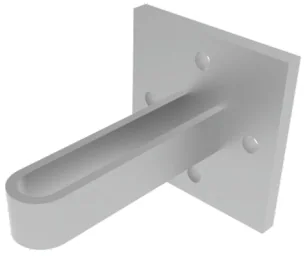

Beam Clamp
0.7 kg
Formwork Crane Hook
2.9 kg

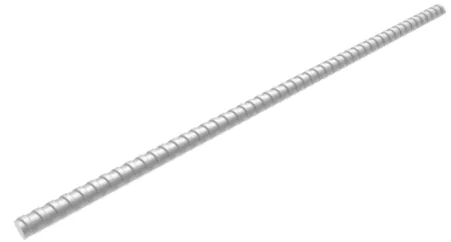

Tie-Rod Ø15/17
50–600 cm · 0.75–9 kg
Tie-Rod Nut Ø90
0.5 kg

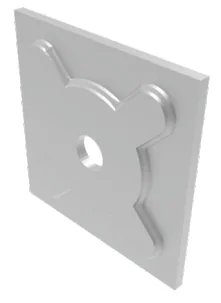

Tie-Rod Plate 8 mm
120×120 · 0.9 kg

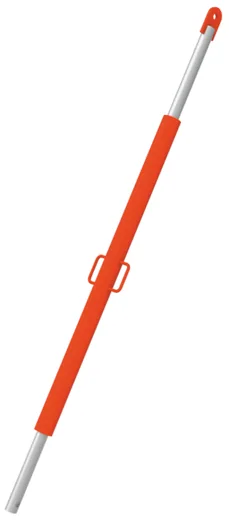

Push Pull Prop Ø60
60–300 cm · 8.03–23 kg

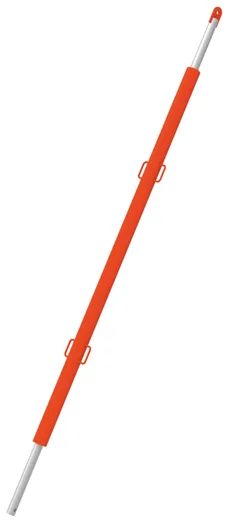

Push Pull Prop Ø76
300–600 cm · 45–66.7 kg

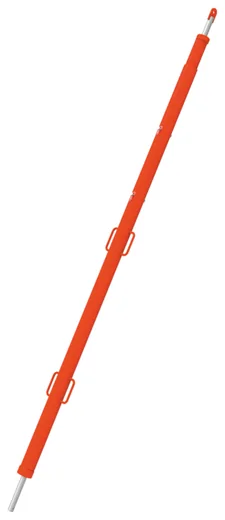

Telescopic Push Pull Prop Ø102
650-1050 · 148 kg

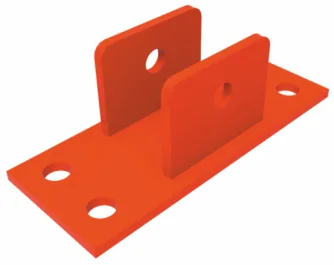

Base Plate Single
1.7 kg

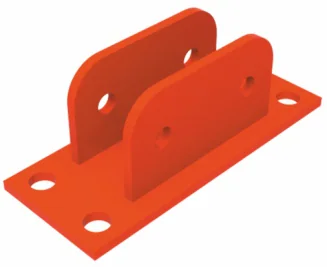

Base Plate Double
2.7 kg

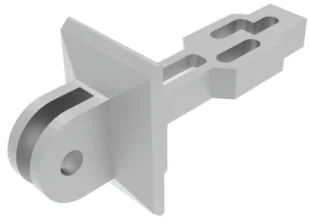

Push Pull Prop Head
2.3 kg
Push Pull Prop Wedge
0.4 kg

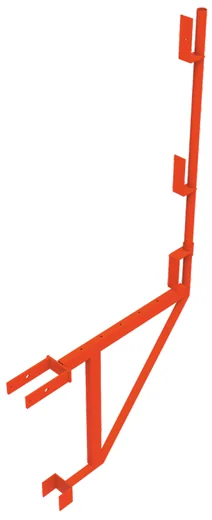

Formwork Bracket
6.1 kg
H20 Beam Formwork System
Erection sequence

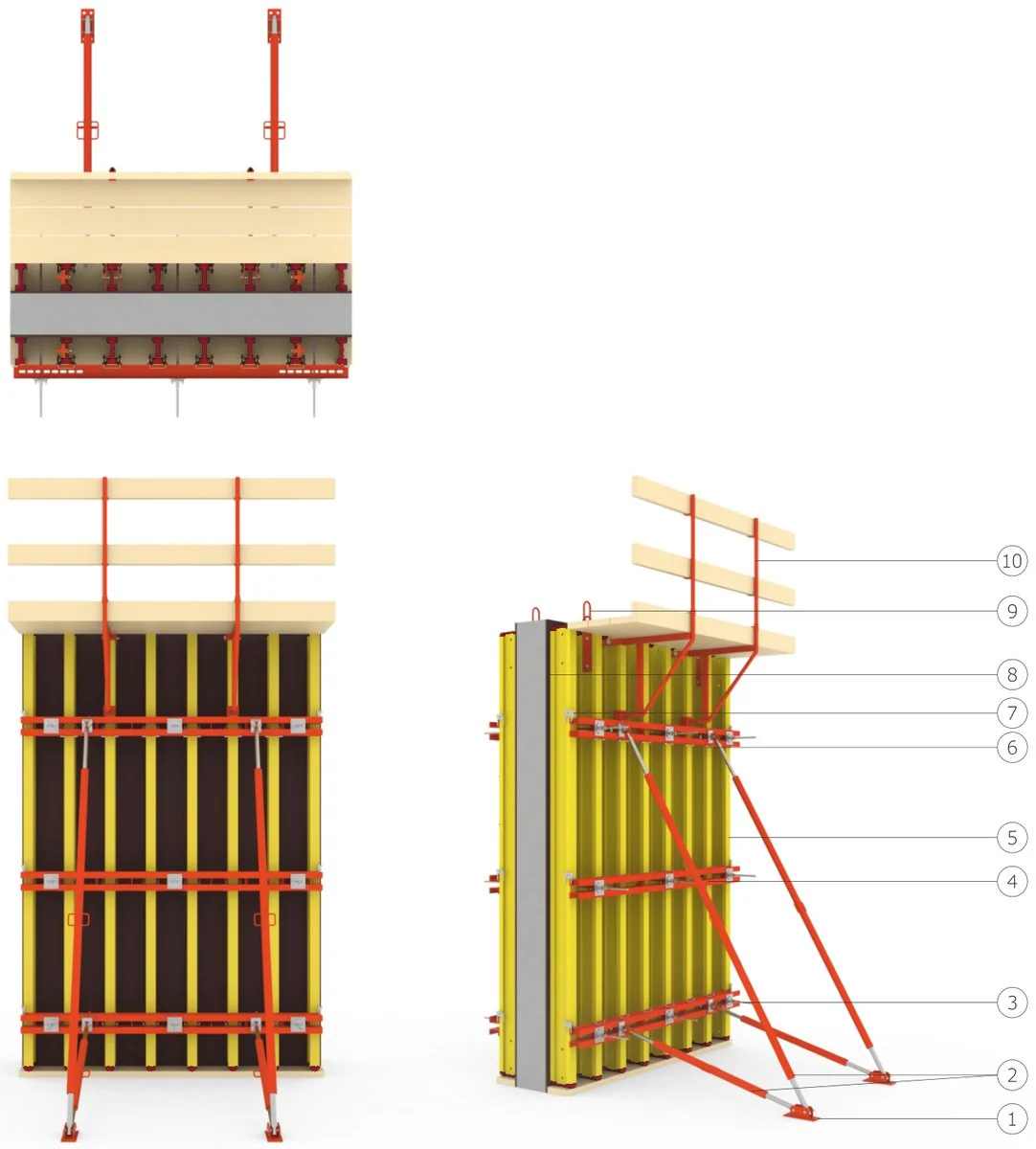

General view
- Base Plate Double
- Push-Pull Prop
- Tie-Rod + Nut + Plate
- Steel Waler
- H20 Timber Beam
- Hook Set
- H20 Clip
- Plywood
- Crane Hook
- Working Bracket
- H20 beams are fixed to the steel walers with hook sets at the design spacing.
- Plywood is screwed to the beams to form the panel; crane hooks and brackets are fitted.
- The panel is lifted into place and plumbed with push-pull props.
- Panels are joined with waler connectors; column walers are used for columns.
- The opposite face is erected and tied with tie-rods, nuts and plates.
- Working platform and guardrails are completed and concrete is poured.
Application notes
- The number of H20 beams and walers can be increased or reduced to suit concrete pressure and pouring rate.
- Columns of different sizes can be formed with the same walers.
- Erection, dismantling and modifications must only be carried out by trained, certified crews according to the approved design.
- Damaged, deformed or incomplete components must never be used.
- The ground must be level, firm and capable of carrying the loads.
- The system must be inspected by a competent person after erection, at regular intervals, after any modification and after adverse weather.
- Local regulations and occupational health & safety rules must be followed.
Catalogues
H20 Beam Formwork System catalogue
System introduction, size and weight tables of all components, erection sequence and technical data in a single PDF. Turkish / English.
Download catalogue (PDF) · 4.1 MB All catalogues
