Material Transport Bracket
Cantilever platform for loading and unloading materials at floors.
- 10 components
- 23 size options
MTB
About the Material Transport Bracket
BLC Material Transport Bracket is a cantilever platform installed on main props and beams fixed to the slab, used for loading and unloading formwork and materials by crane. Guardrails create a safe working area.
Key features
- Main props fixed to the slab
- 600 cm main beam
- Timber deck and guardrails
Material Transport Bracket
System components
Click a component for its size and weight table.
Main Prop
200–350 cm · 54–72 kg

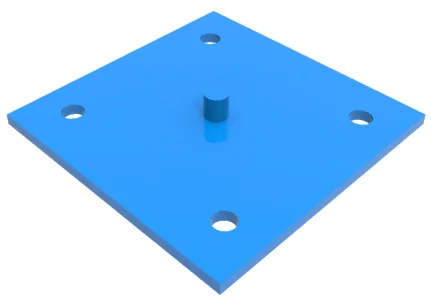

Fixing Plate
1.7 kg

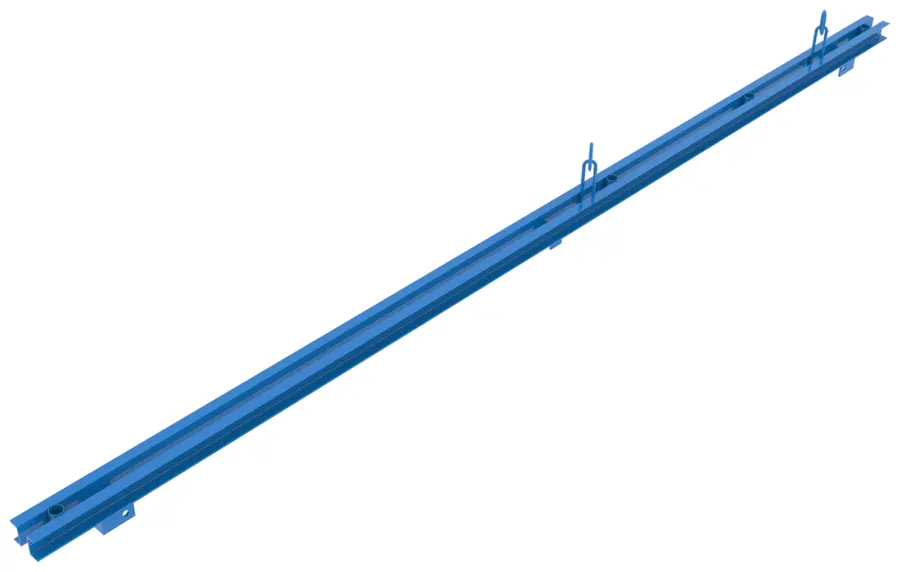

Main Beam
600 cm · 140 kg

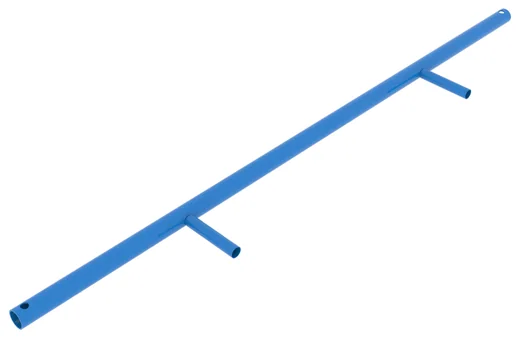

Tension Tube
300–395 cm · 25.1–31.9 kg

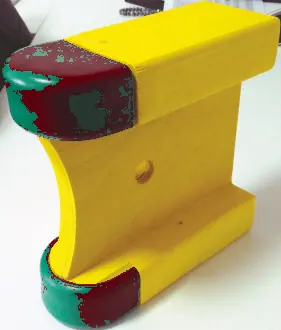

H20 Wooden Beam
290–450 cm · 13–20.3 kg

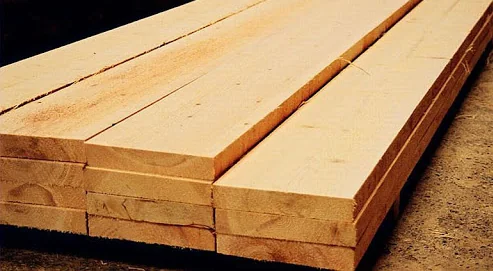

Wooden Deck
5×20×300 … 5×15×400 · 12–16 kg
Base Jack Ø48 + Nut
100 cm · 6.7 kg

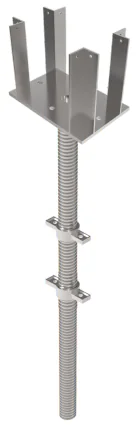

H20 Head Jack Ø48 + Nut
100 cm · 10.2 kg
Head - H20 Coupler
1.2 kg

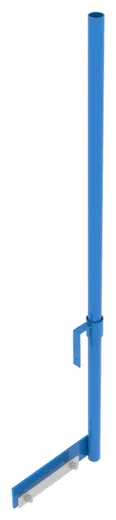

Guardrail
145–170 cm · 6.9–7.7 kg
Material Transport Bracket
Erection sequence

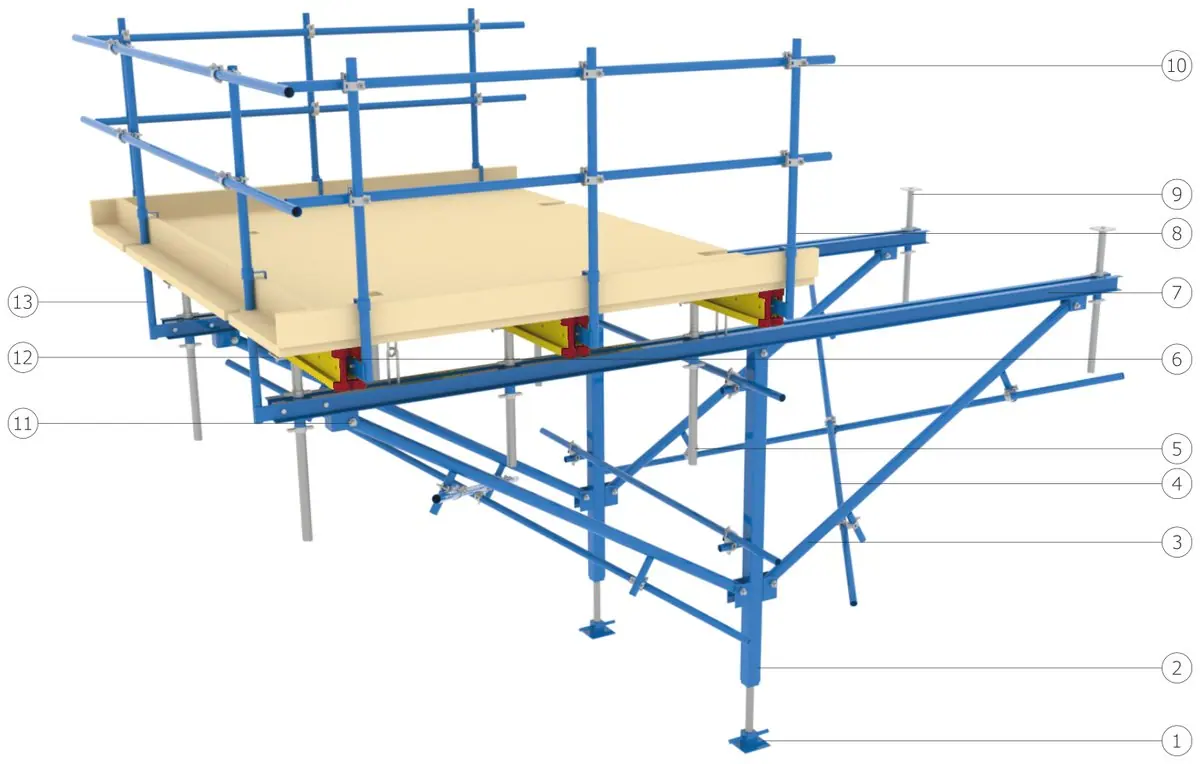

General view
- Fixing Plate
- Main Prop
- Tension Tube
- Tube Ø48×3.0
- H20 Head Jack Ø48
- H20 Timber Beam
- Main Beam
- Guardrail 145
- Base Jack Ø48
- Swivel Coupler
- Bolt and Nut 27×150
- Head - H20 Coupler
- Guardrail 170

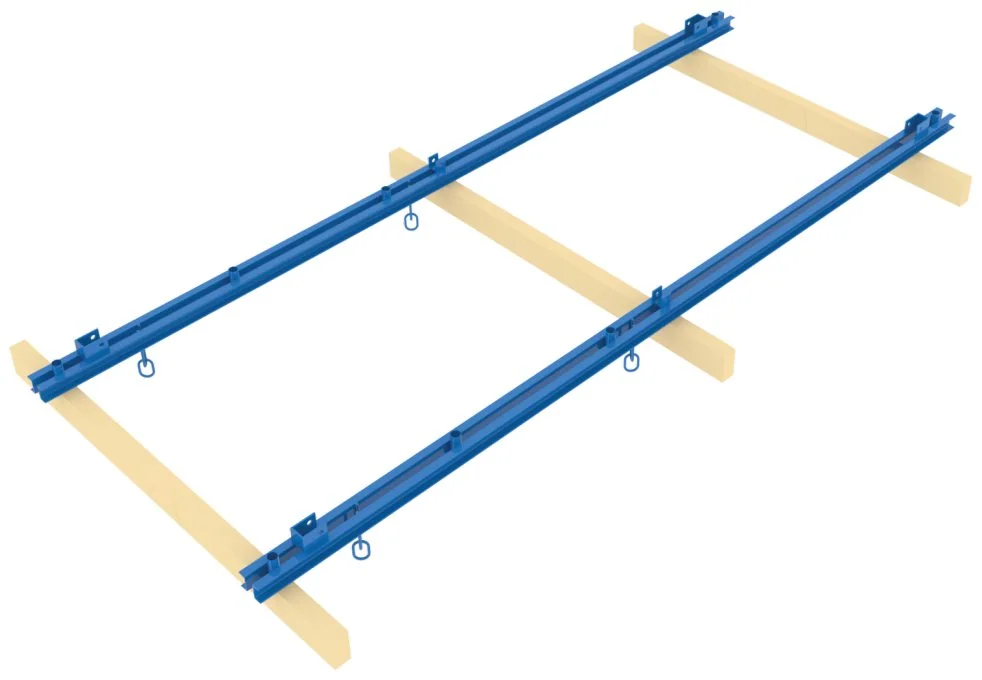

- Main beams are set 200 cm apart, centre to centre.

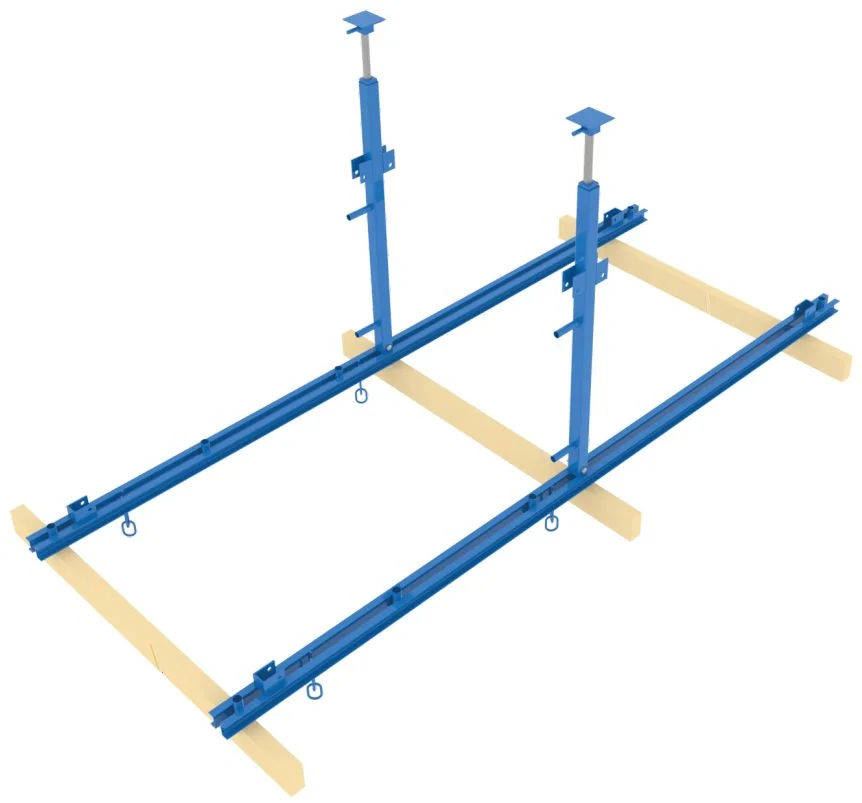

- Main props are bolted to the main beams with 27×150 bolts.
- Main props are braced together with 3 m tubes and couplers.

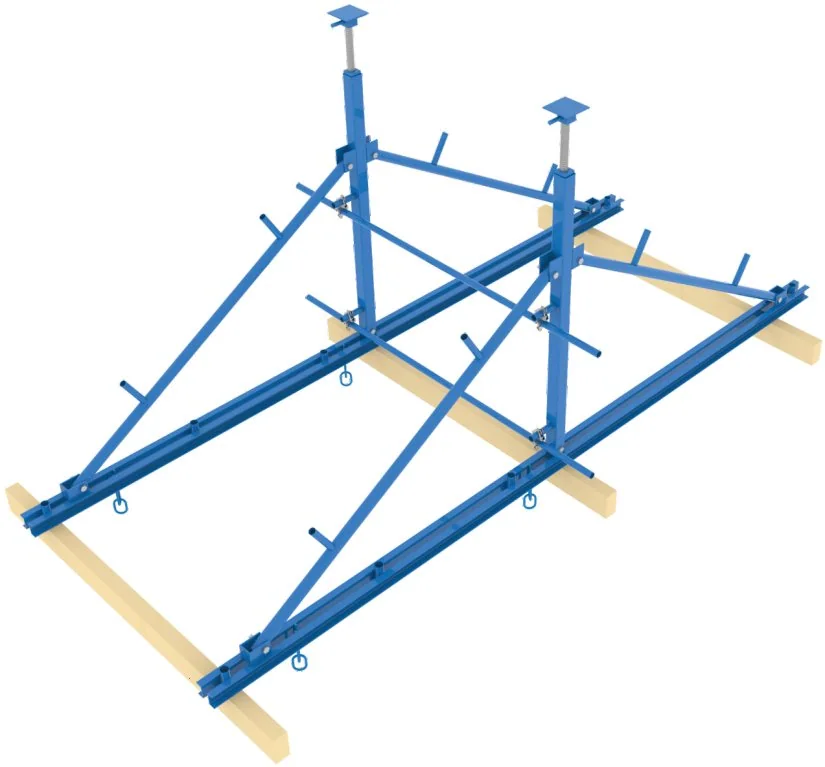

- Tension tubes are bolted to the main props and beams with 27×150 bolts.

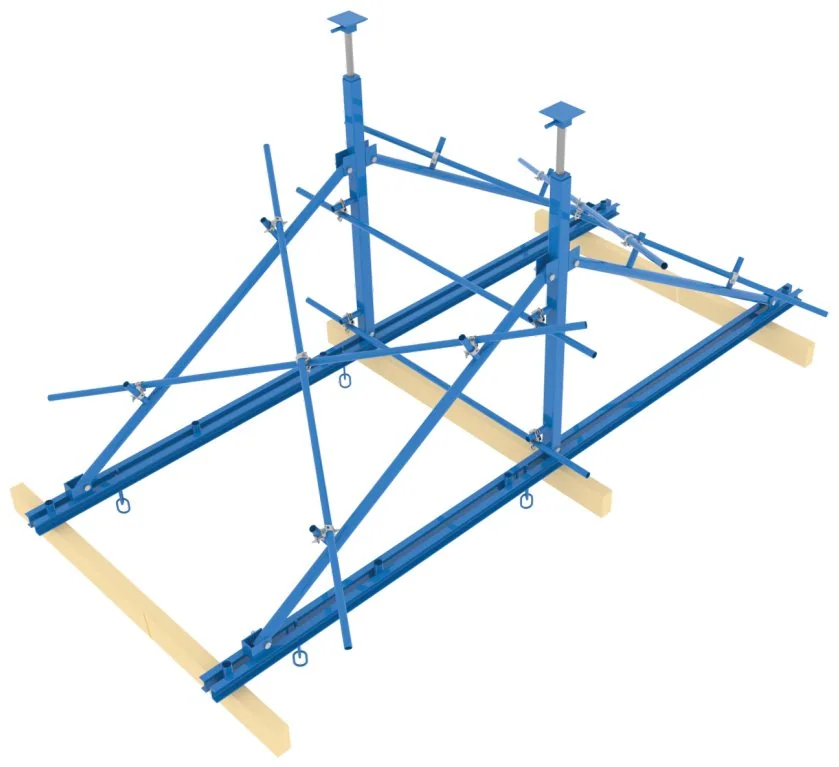

- Tension tubes are braced together with 4 m tubes and couplers.

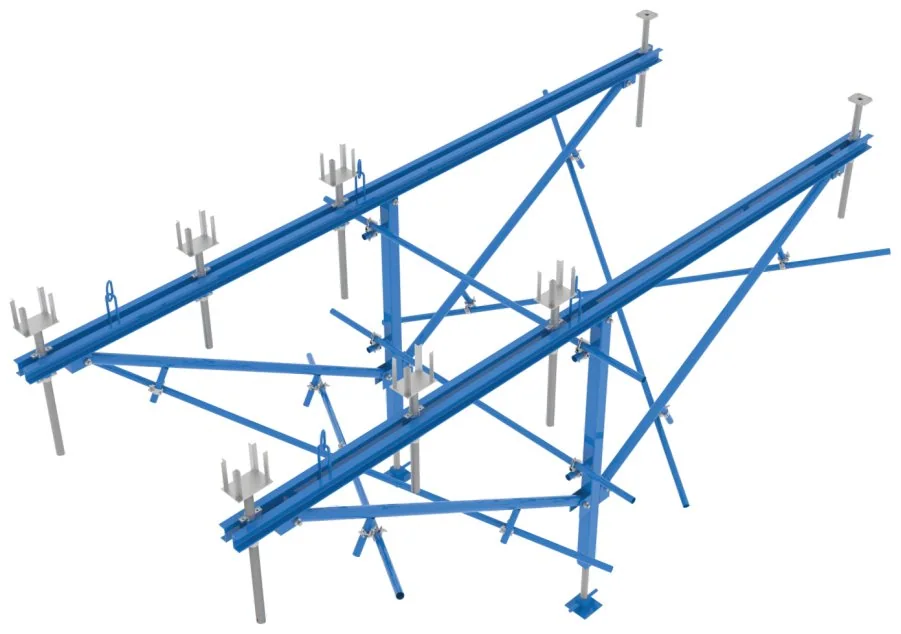

- The bracket is turned over 180° and the jacks are fitted.

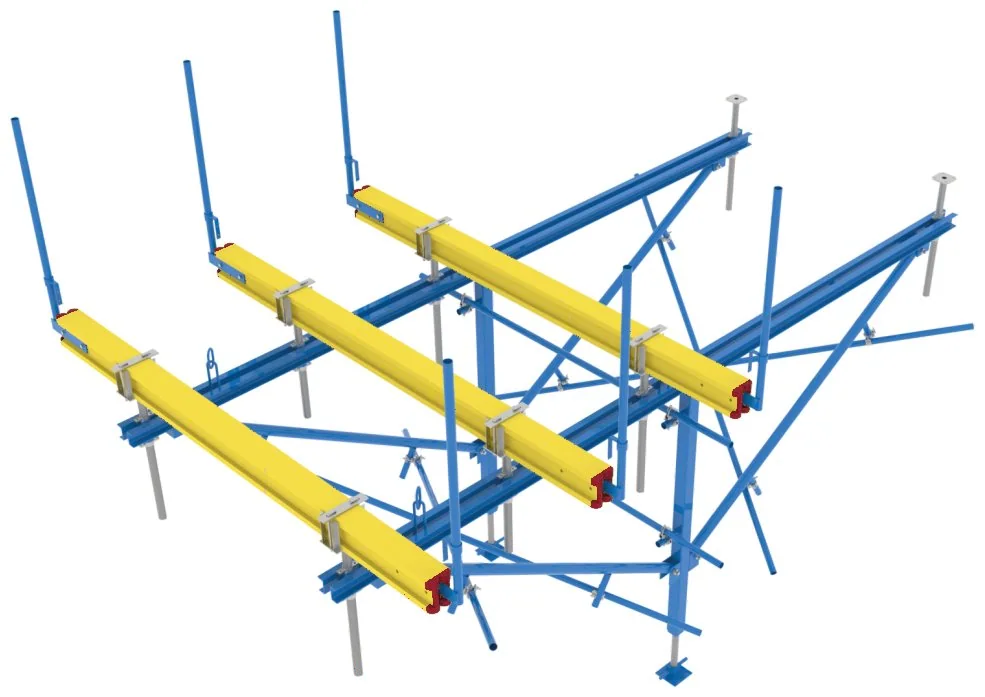

- H20 beams and 145 guardrails are installed.

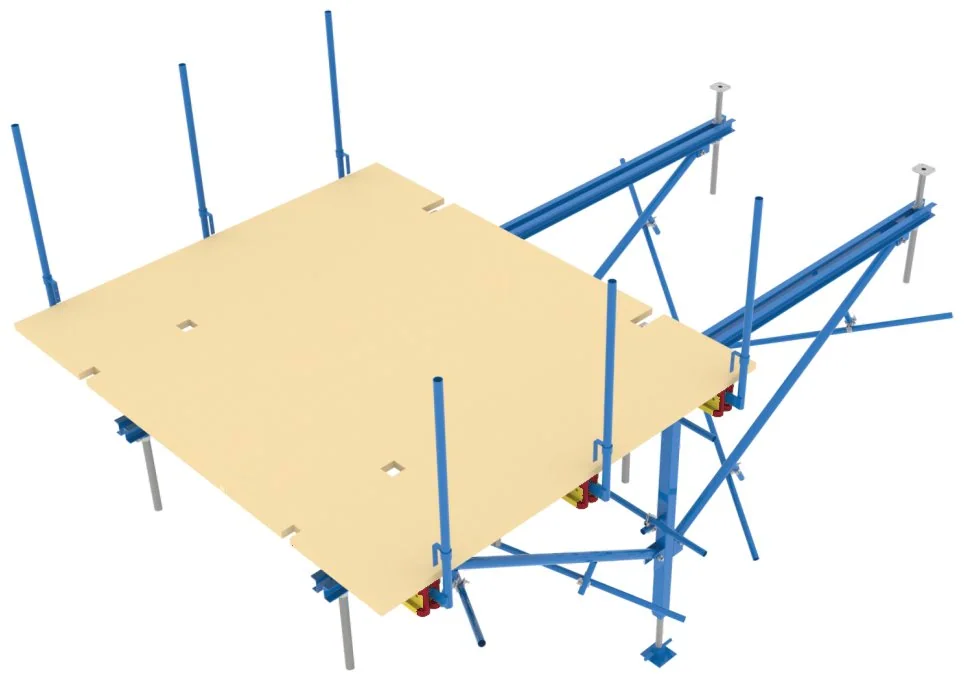

- 5×20×300 cm timber boards are fixed on the H20 beams.

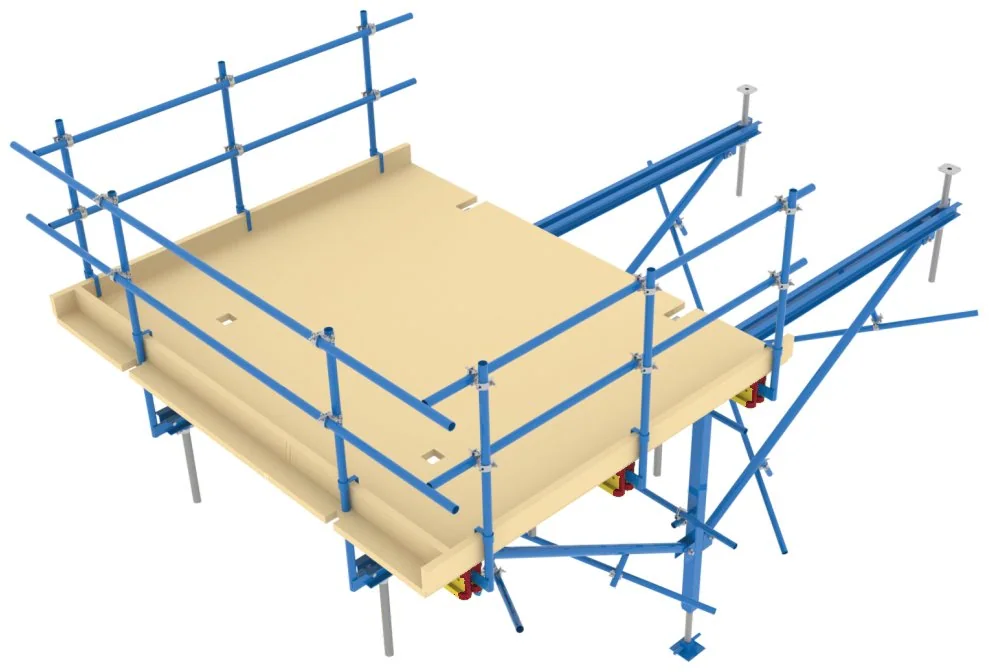

- Guardrail 170, toe boards and guardrail tubes are installed.

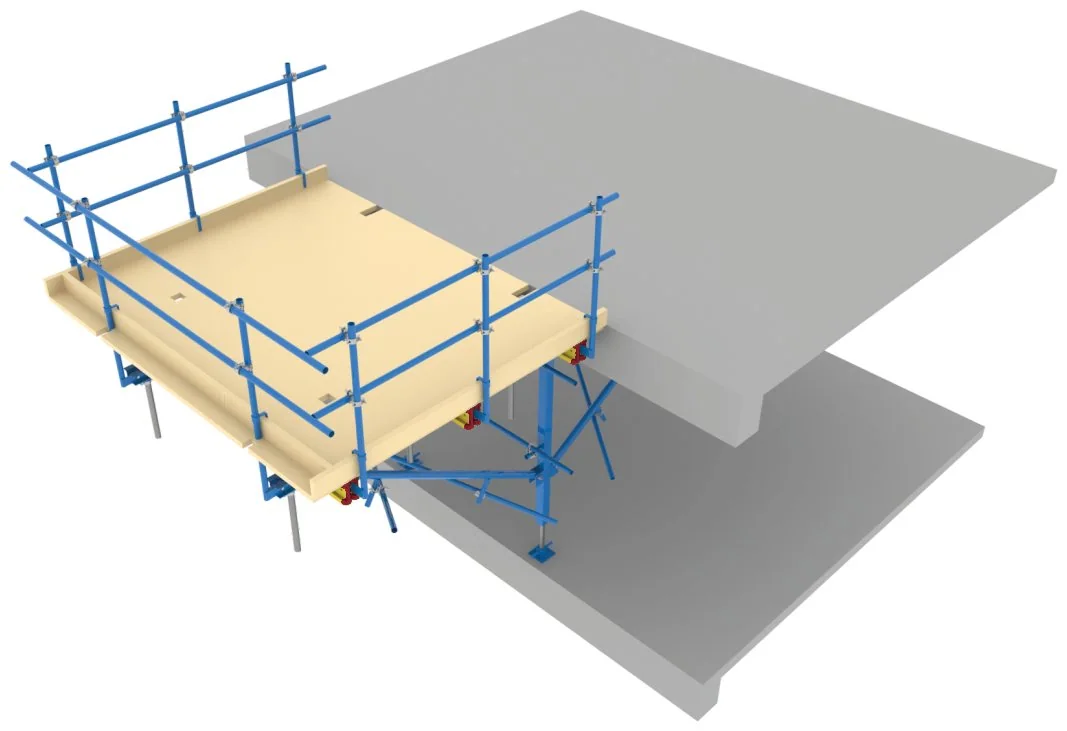

- The platform is lifted by crane to its floor and fixed with anchor screws.
Application notes
- Before moving, the platform is emptied; the crane is attached at the four lifting points on the main beam.
- Anchor screws are removed and the main beam and jacks loosened before the platform is moved.
- Loads must be evenly distributed; materials must not be stacked or concentrated on one side.
- Erection, dismantling and modifications must only be carried out by trained, certified crews according to the approved design.
- Damaged, deformed or incomplete components must never be used.
- The ground must be level, firm and capable of carrying the loads.
- The system must be inspected by a competent person after erection, at regular intervals, after any modification and after adverse weather.
- Local regulations and occupational health & safety rules must be followed.
Catalogues
Material Transport Bracket catalogue
System introduction, size and weight tables of all components, erection sequence and technical data in a single PDF. Turkish / English.
Download catalogue (PDF) · 4.4 MB All catalogues
