Heavy Duty Panel Formwork System
Circular Column Panel (Steel Faced)
Dairesel Kolon Kalıbı Paneli (Sac Yüzeyli)- 40 sizes
- Ø30×50 … Ø120×300
- 19–291 kg

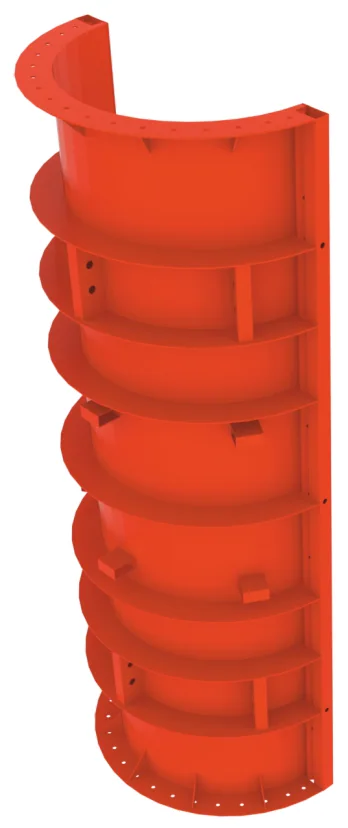

The Circular Column Panel (Steel Faced) is a component of the BLC Heavy Duty Panel Formwork System. It is available in 40 sizes (Ø30×50 … Ø120×300) with a unit weight of 19–291 kg. Request a quote for purchase or rental, or see all sizes and weights in the system catalogue.
| Code | Size (cm) | Weight (kg) |
|---|---|---|
| 61132501 | Ø30×50 | 19.00 |
| 61132502 | Ø30×100 | 43.00 |
| 61132503 | Ø30×150 | 65.00 |
| 61132504 | Ø30×300 | 120.00 |
| 61132505 | Ø40×50 | 23.00 |
| 61132506 | Ø40×100 | 50.00 |
| 61132507 | Ø40×150 | 74.00 |
| 61132508 | Ø40×300 | 138.00 |
| 61132509 | Ø50×50 | 26.00 |
| 61132510 | Ø50×100 | 57.00 |
| 61132511 | Ø50×150 | 84.00 |
| 61132512 | Ø50×300 | 158.00 |
| 61132513 | Ø60×50 | 29.00 |
| 61132514 | Ø60×100 | 63.00 |
| 61132515 | Ø60×150 | 93.00 |
| 61132516 | Ø60×300 | 177.00 |
| 61132517 | Ø70×50 | 33.00 |
| 61132518 | Ø70×100 | 69.00 |
| 61132519 | Ø70×150 | 101.00 |
| 61132520 | Ø70×300 | 195.00 |
| 61132521 | Ø80×50 | 35.00 |
| 61132522 | Ø80×100 | 76.00 |
| 61132523 | Ø80×150 | 111.00 |
| 61132524 | Ø80×300 | 215.00 |
| 61132525 | Ø90×50 | 39.00 |
| 61132526 | Ø90×100 | 83.00 |
| 61132527 | Ø90×150 | 120.00 |
| 61132528 | Ø90×300 | 233.00 |
| 61132529 | Ø100×50 | 42.00 |
| 61132530 | Ø100×100 | 90.00 |
| 61132531 | Ø100×150 | 130.00 |
| 61132532 | Ø100×300 | 253.00 |
| 61132533 | Ø110×50 | 45.00 |
| 61132534 | Ø110×100 | 96.00 |
| 61132535 | Ø110×150 | 138.00 |
| 61132536 | Ø110×300 | 272.00 |
| 61132537 | Ø120×50 | 49.00 |
| 61132538 | Ø120×100 | 102.00 |
| 61132539 | Ø120×150 | 147.00 |
| 61132540 | Ø120×300 | 291.00 |
