Circular Wall Formwork System
Adjustable formwork for tanks, silos and circular walls.
- 6 components
- 14 size options
CWF
About the Circular Wall Formwork System
BLC Circular Wall Formwork is built on the H20 beam formwork system and can be adjusted to the required radius with tension components. It is used for circular structures such as water tanks, treatment plants, silos and tanks.
Key features
- Radius adjustment with tension component
- Shares components with the H20 beam system
- Tanks, silos and treatment plants
Circular Wall Formwork System
System components
Click a component for its size and weight table.
Circular Wall Formwork System
Erection sequence

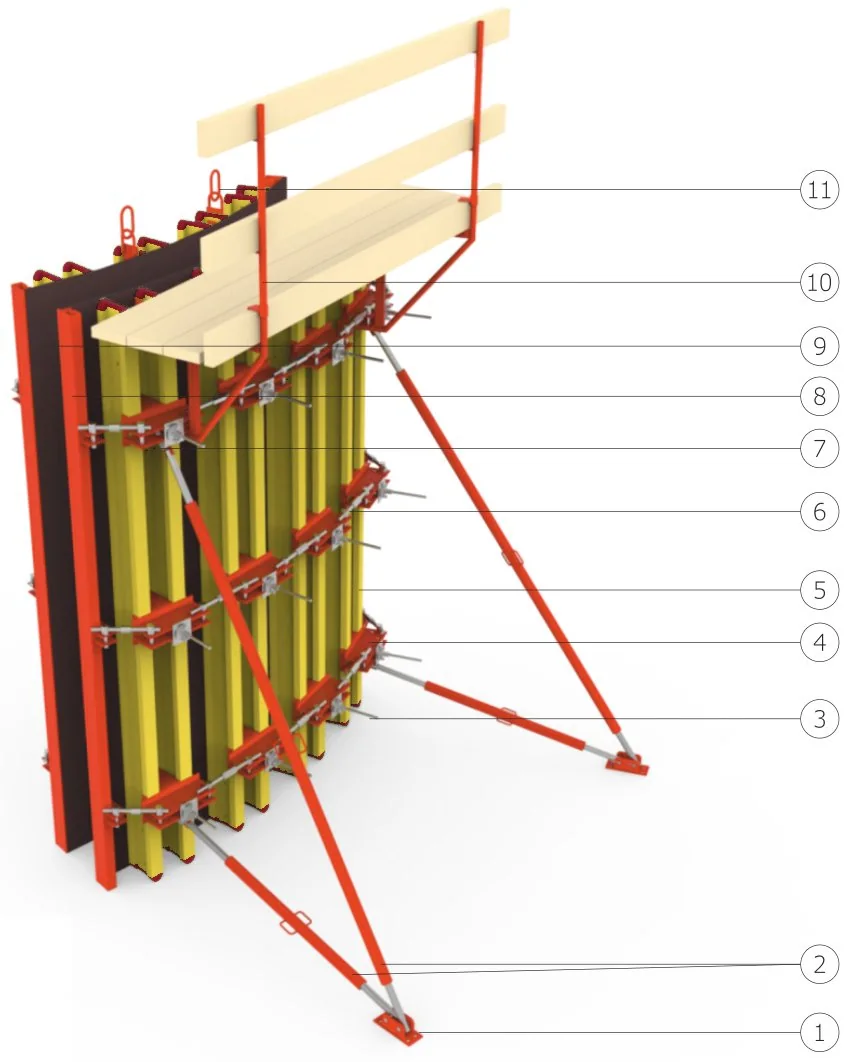

General view
- Base Plate Double
- Push-Pull Prop
- Tie-Rod + Nut + Plate
- Circular Waler
- H20 Timber Beam

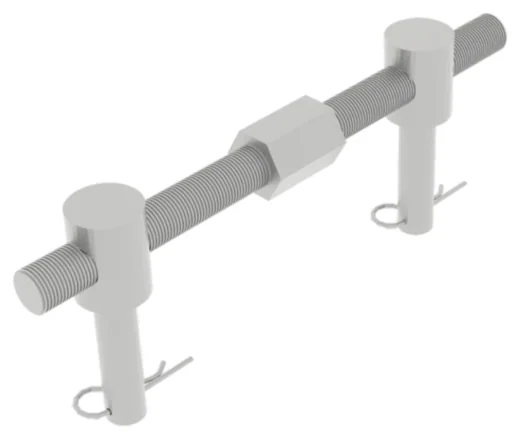

- Tension Component

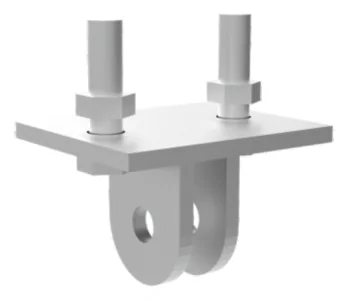

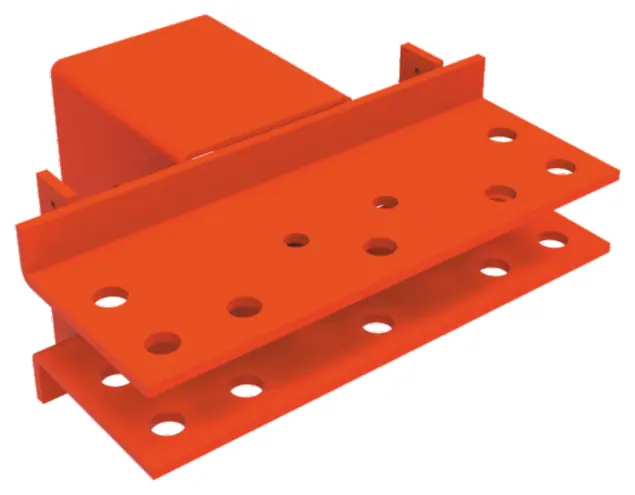

- Prop Head

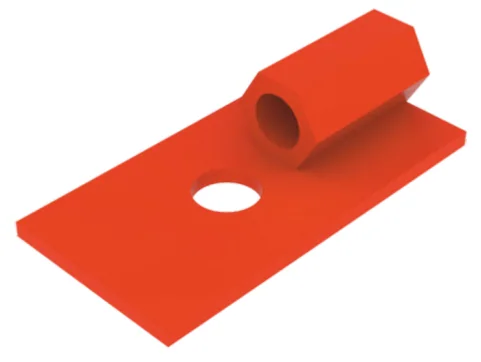

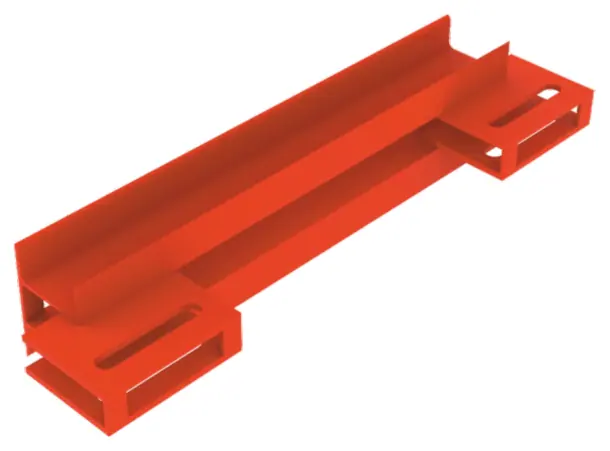

- Edge Component
- Plywood
- Working Bracket
- Crane Hook
- A flat panel is assembled from plywood, H20 beams, circular walers and edge components.
- Tension components are fitted to the walers.
- The tension components are adjusted to the template to give the panel the required radius.
- Panels are placed by crane and braced with props; the opposite face is tied with tie-rods.
- Working brackets and guardrails are fitted and the concrete is poured.
Application notes
- Erection, dismantling and modifications must only be carried out by trained, certified crews according to the approved design.
- Damaged, deformed or incomplete components must never be used.
- The ground must be level, firm and capable of carrying the loads.
- The system must be inspected by a competent person after erection, at regular intervals, after any modification and after adverse weather.
- Local regulations and occupational health & safety rules must be followed.
