Edge Protection System
Temporary safety barrier for slab edges and openings.
- 19 components
- 25 size options
EPS
About the Edge Protection System
BLC Edge Protection System consists of panels and posts providing temporary fall protection at slab edges, stair openings and roof edges. With various post and clamp options it is quickly fixed to concrete, steel beams, timber and stairs.
Key features
- A and B type panels (120 / 250 cm)
- Fixings for concrete, steel and timber
- Flexible length with telescopic ledger
- Fast installation, reusable
Edge Protection System
System components
Click a component for its size and weight table.

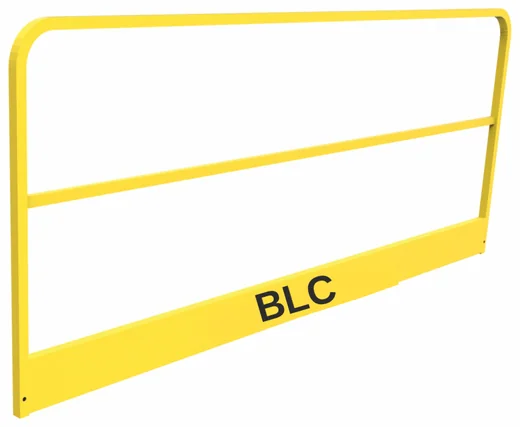

A Type Standard Panel
120–250 cm · 6.7–11.5 kg

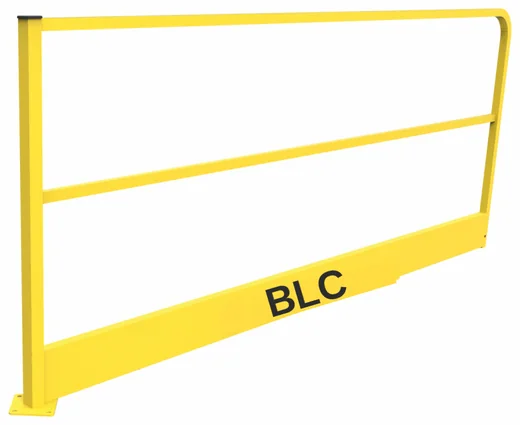

A Type Post Panel
120–250 cm · 8.5–13 kg

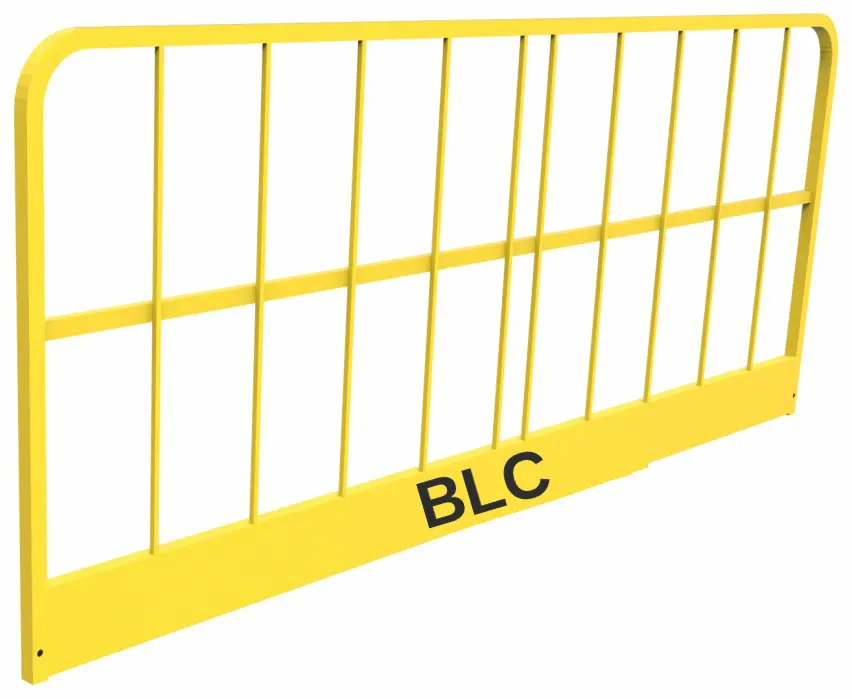

B Type Standard Panel
120–250 cm · 7.5–14 kg

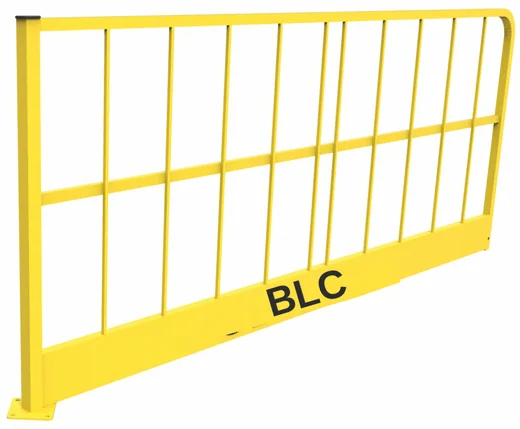

B Type Post Panel
120–250 cm · 9–15 kg
Standard Panel Post
3.5 kg
Pin Post
2.5 kg
Wooden Guardrail Post
3.5 kg

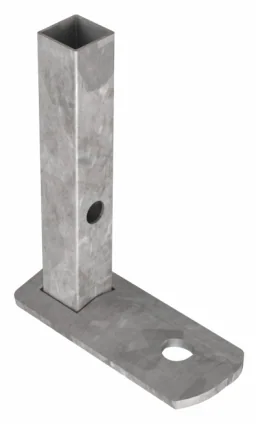

Eco Post
0.5 kg

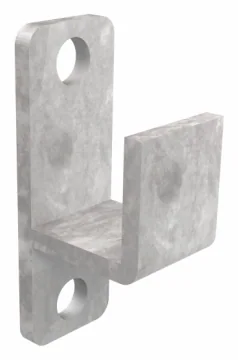

Wall Hanger
0.2 kg

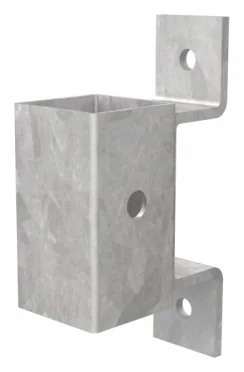

Wall Post Bracket
1 kg

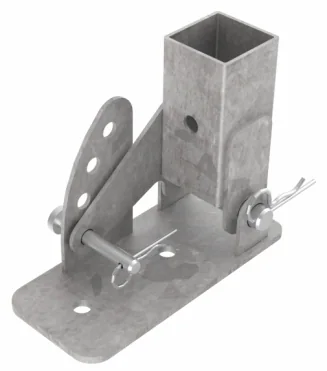

Angular Post Plate
1.5 kg

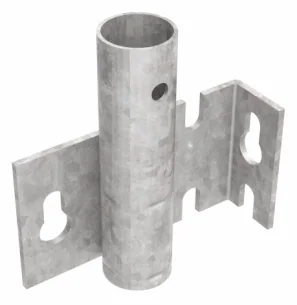

Pin Post Bracket
1.5 kg
Pin Post Base Plate
0.5 kg

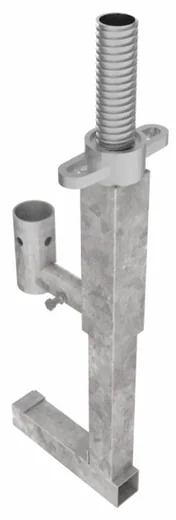

Adjustable Stair Clamp
3.7 kg

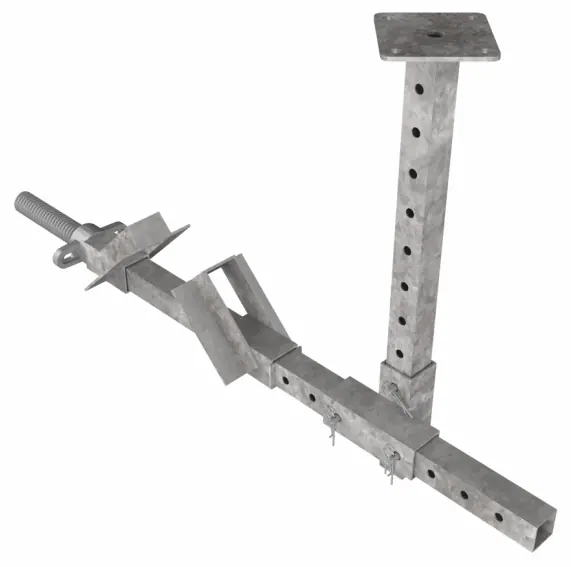

Steel Beam Clamp
8.5 kg

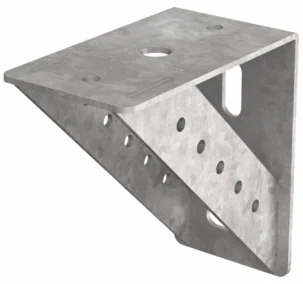

Console Base Plate
2 kg

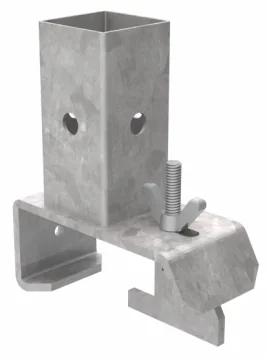

H20 Clamp
0.9 kg

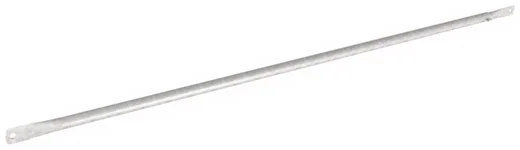

Telescopic Ledger
90-150 … 250-350 · 3.5–7.5 kg

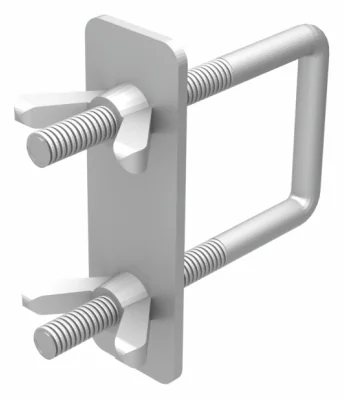

U Bolt M8×100 + Nut + Plate
0.2 kg
Edge Protection System
Erection sequence

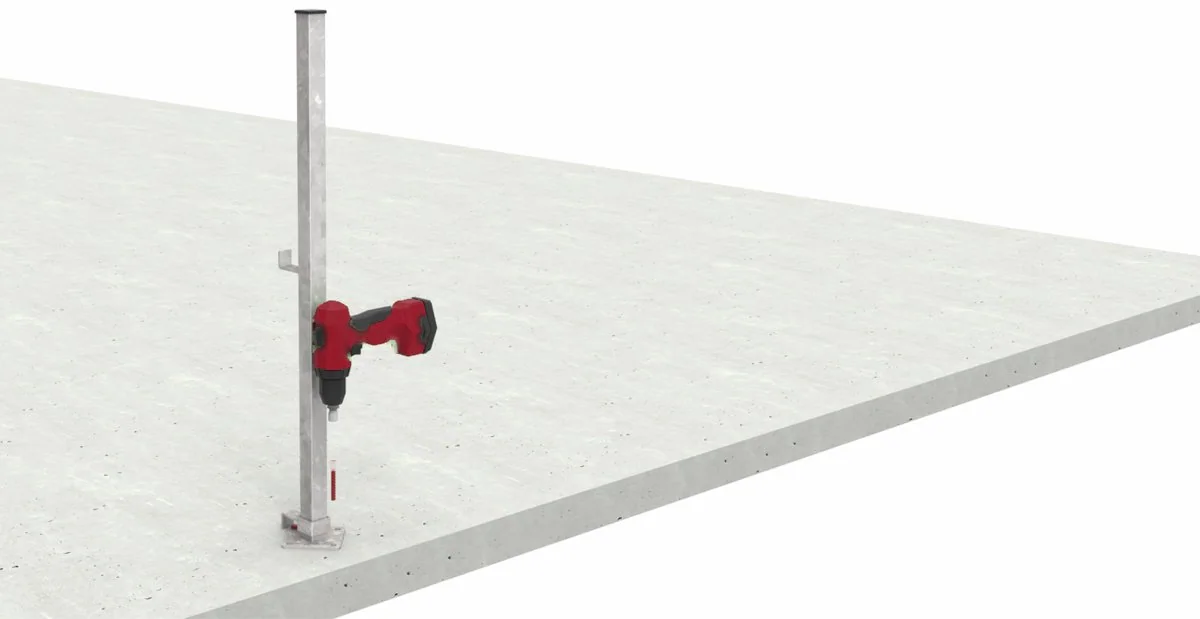

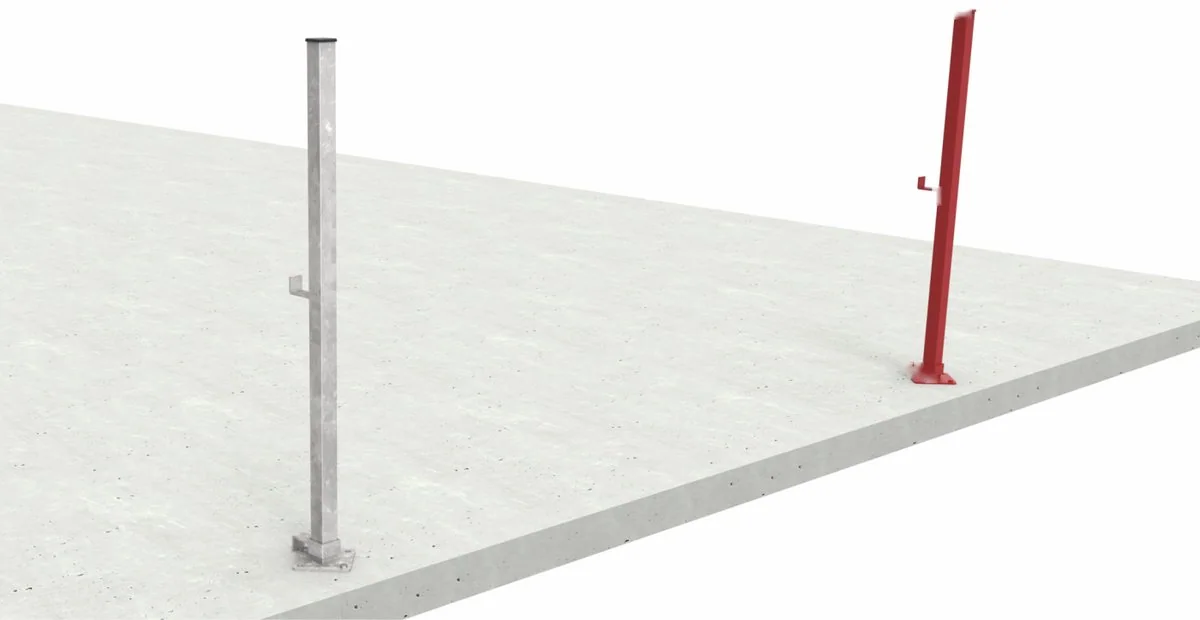

- Post positions are marked according to the plan and the posts are fixed with anchor screws.
- The second post is positioned according to the panel length and fixed.

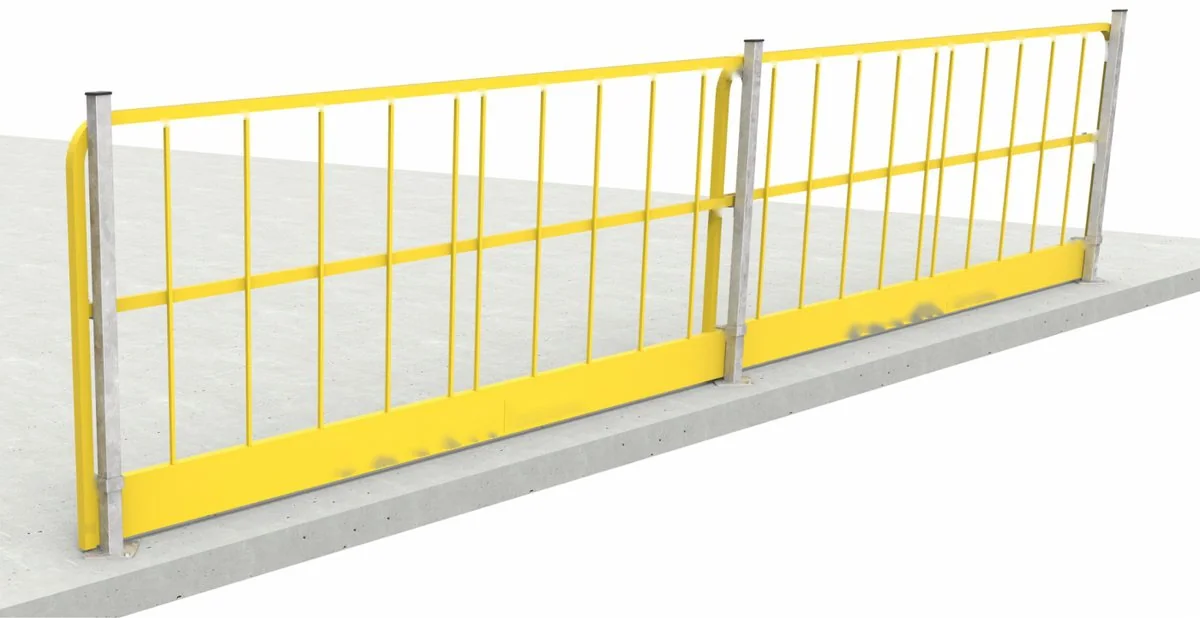

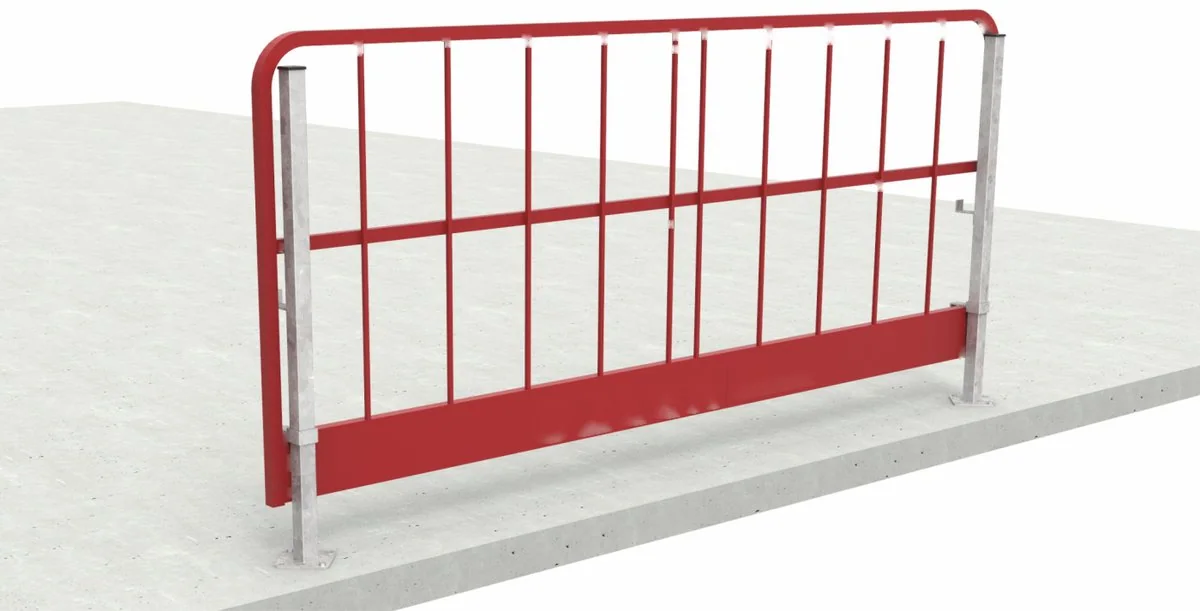

- Panels are installed on the posts.
- The steps are repeated along all edges with a fall risk.
Application notes
- Post panels are fixed to the ground through their base plates; panel clamps are used at overlaps.
- TS EN 13374 class A: working surface inclination below 10°.
- Class B: inclination up to 30°, or up to 60° with a fall height below 2 m.
- Class C: inclination up to 45°, or up to 60° with a fall height below 5 m. Beyond that, edge protection alone is not sufficient.
- Erection, dismantling and modifications must only be carried out by trained, certified crews according to the approved design.
- Damaged, deformed or incomplete components must never be used.
- The ground must be level, firm and capable of carrying the loads.
- The system must be inspected by a competent person after erection, at regular intervals, after any modification and after adverse weather.
- Local regulations and occupational health & safety rules must be followed.
Catalogues
Edge Protection System catalogue
System introduction, size and weight tables of all components, erection sequence and technical data in a single PDF. Turkish / English.
Download catalogue (PDF) · 4.2 MB All catalogues
