Aluminium Panel Formwork System
Lightweight aluminium wall formwork handled manually.
- 11 components
- 115 size options
APF

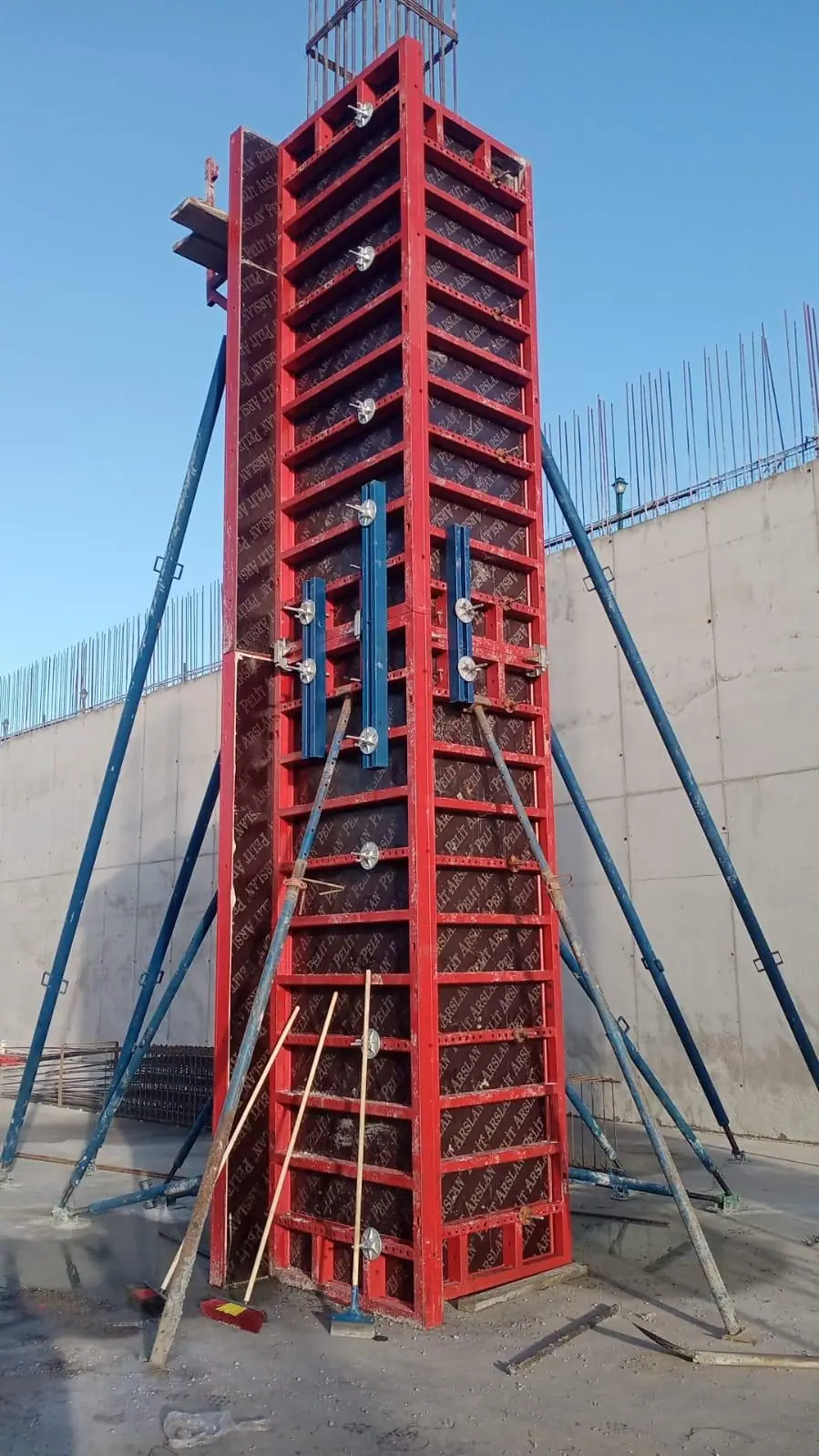

About the Aluminium Panel Formwork System
BLC Aluminium Panel Formwork consists of lightweight aluminium-framed panels; since it can be erected manually without a crane, it saves time in confined areas and small projects. It shares accessories with the steel panel formwork system.
Key features
- 20-90 cm width, 90-300 cm height
- Manual erection without crane
- Universal panel option
- Accessories shared with steel system
Aluminium Panel Formwork System
System components
Click a component for its size and weight table.

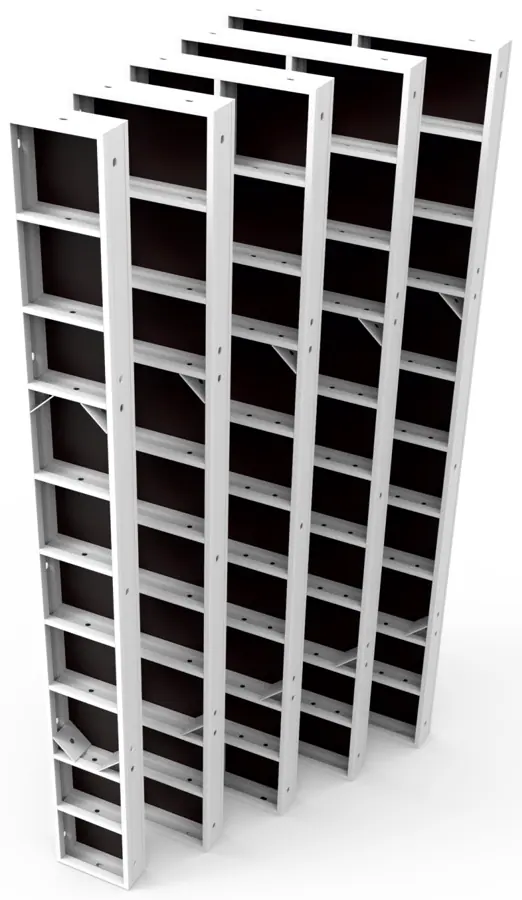

Aluminium Wall Formwork Panel
20×90 … 90×300 · 9.7–62.2 kg

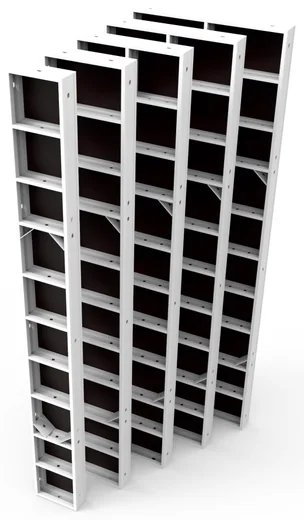

Aluminium Universal Panel
45×90 … 90×300 · 14.8–67.6 kg

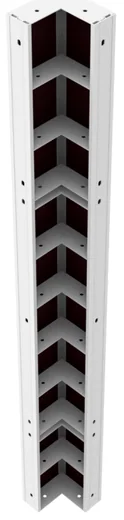

Aluminium Internal Corner
25×25×90 … 35×40×300 · 15.2–58.3 kg

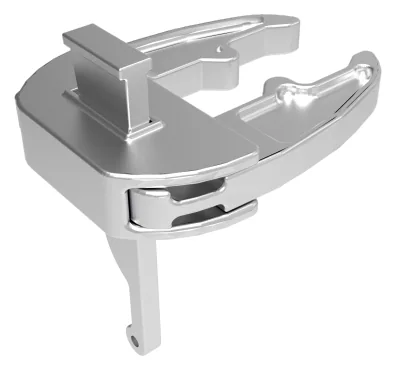

Aluminium Panel Clamp - Standard
3.3 kg

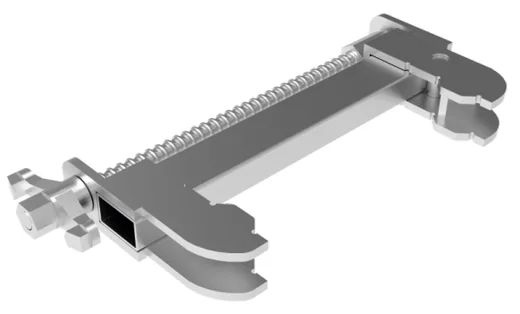

Aluminium Panel Clamp - Adjustable
5.4 kg

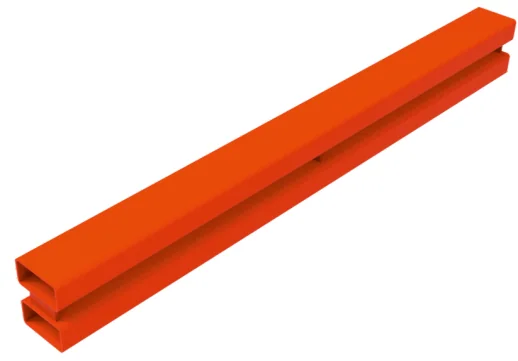

Panel Formwork Support Waler
75–150 cm · 7.6–15.2 kg

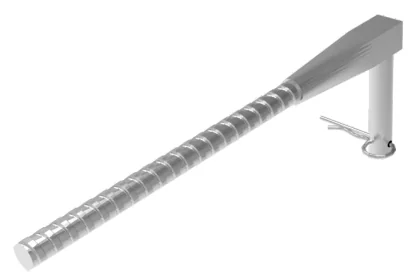

Support Waler Connector
0.7 kg

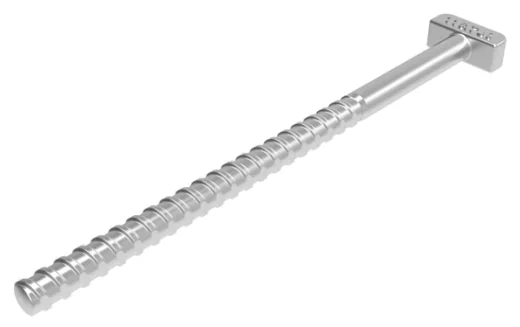

Corner Connection
0.6 kg

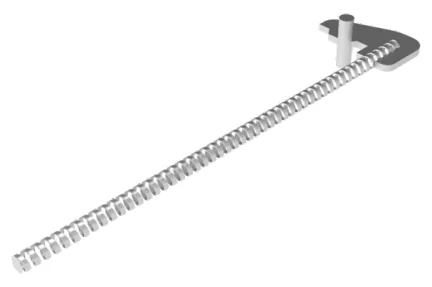

End Plate Connector
1.8 kg
Tie-Rod Plate Nut D140
140 mm · 1.4 kg
Aluminium Panel Push Pull Prop Head
3.2 kg
Aluminium Panel Formwork System
Erection sequence

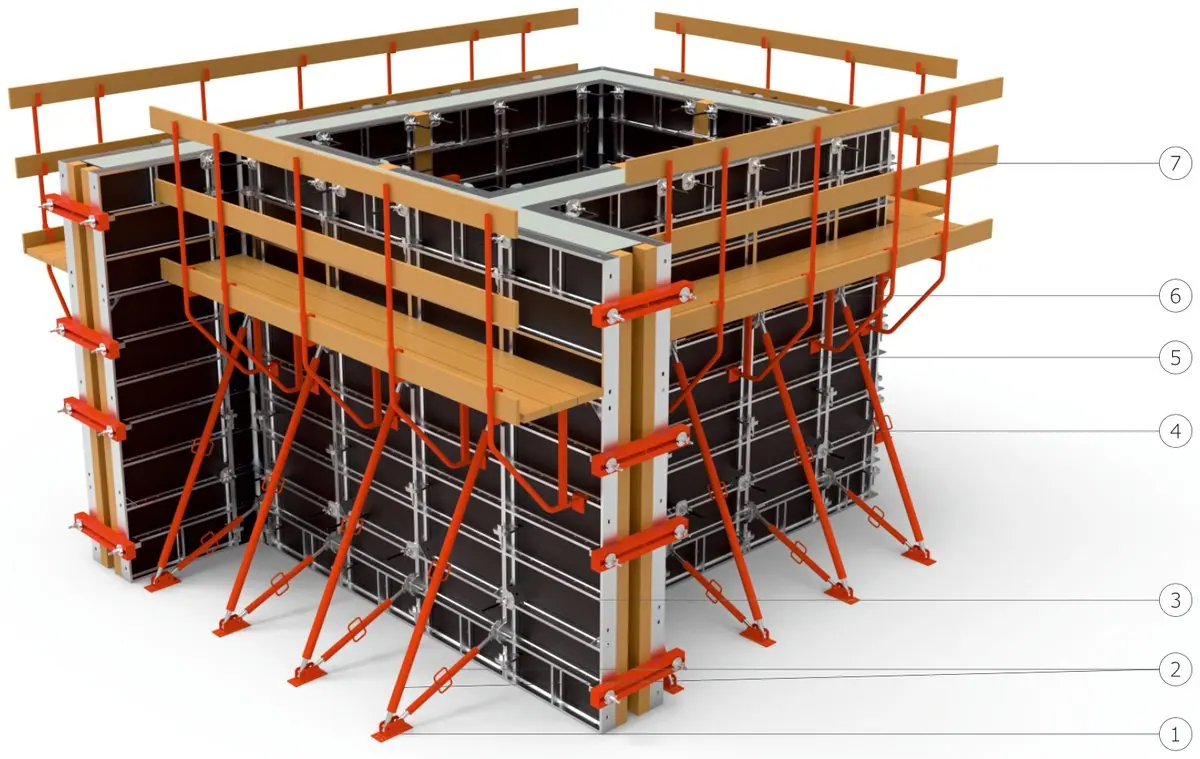

General view
- Base Plate Double
- Push-Pull Prop
- Tie-Rod + Nut + Plate
- Panel Lock
- Aluminium Panel
- Prop Head + Nut
- Working Bracket
- Panel faces are cleaned and release agent is applied.
- The first panel is carried by hand into position and plumbed and fixed with push-pull props.
- Adjacent panels are joined with panel locks; inside and outside corners are used at the corners.
- After the reinforcement and services are placed, the opposite face is erected.
- Both faces are tied together with tie-rods, nuts and plates.
- Working brackets are fitted; guardrails and platform boards are installed.
- Dimensions and plumb are checked and concrete is poured.
- Once the concrete has gained sufficient strength, tie-rods are removed and the panels are stripped.
Application notes
- Light panels can be handled by two persons without a crane.
- Erection, dismantling and modifications must only be carried out by trained, certified crews according to the approved design.
- Damaged, deformed or incomplete components must never be used.
- The ground must be level, firm and capable of carrying the loads.
- The system must be inspected by a competent person after erection, at regular intervals, after any modification and after adverse weather.
- Local regulations and occupational health & safety rules must be followed.
Catalogues
Aluminium Panel Formwork System catalogue
System introduction, size and weight tables of all components, erection sequence and technical data in a single PDF. Turkish / English.
Download catalogue (PDF) · 4.2 MB All catalogues
