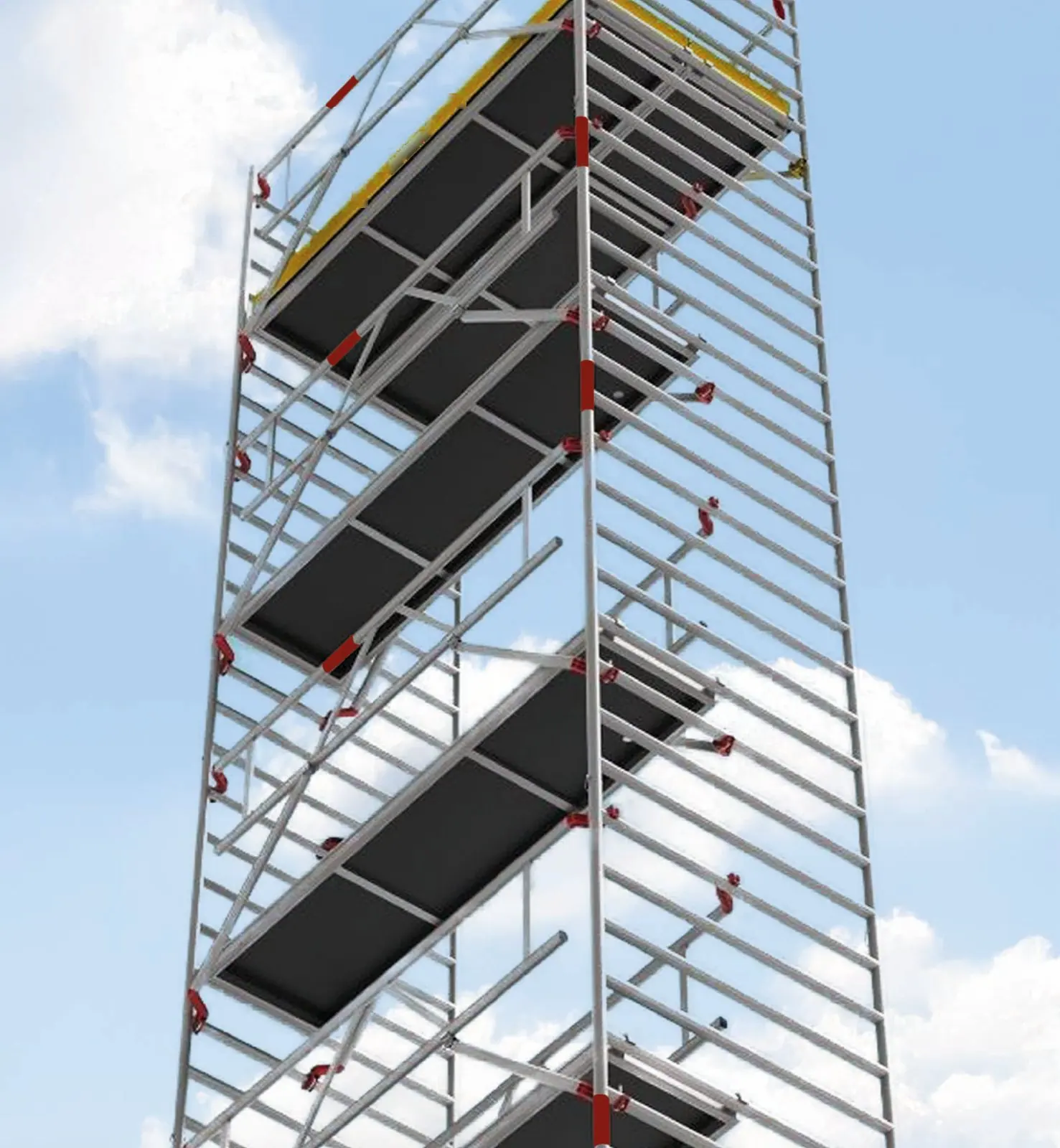

About the Mobile Scaffolding Tower

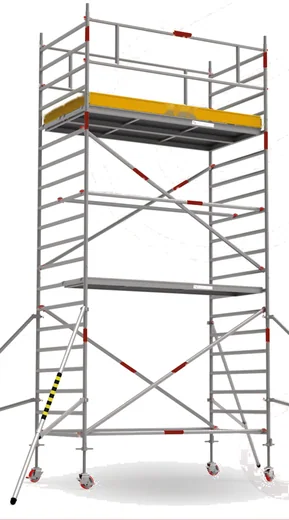

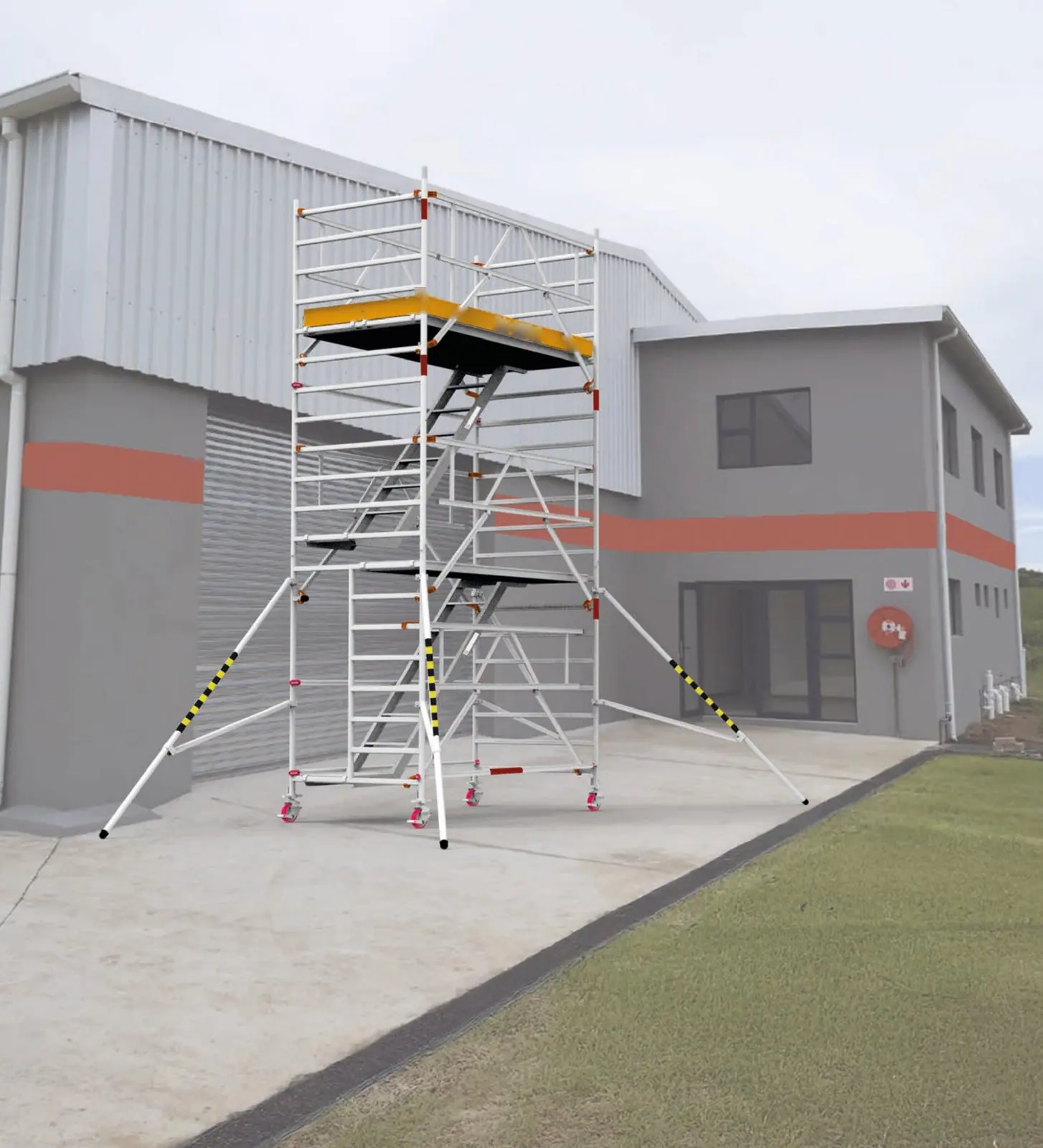

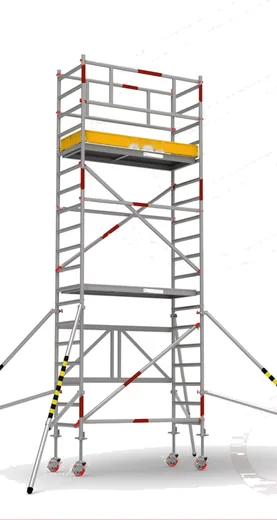

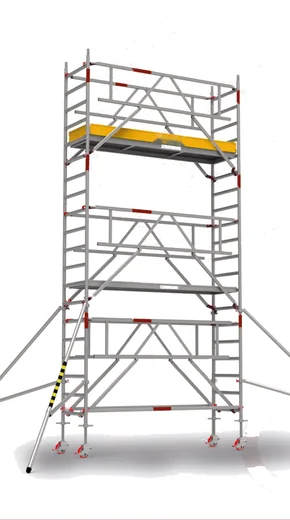

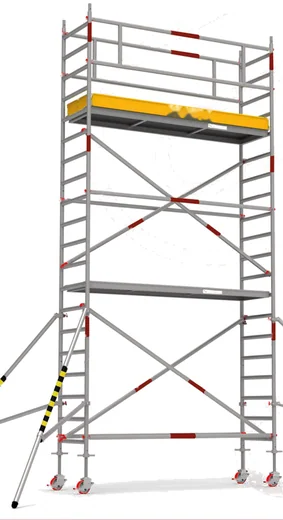

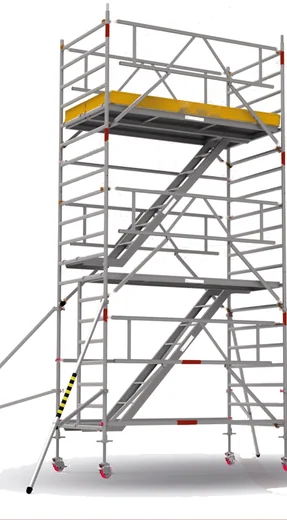

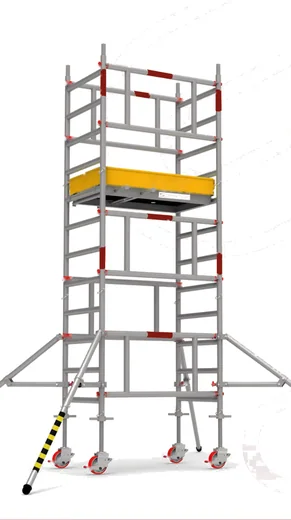

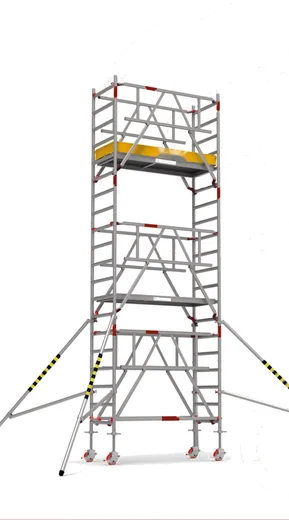

BLC Mobile Scaffolding covers wheeled working towers built with lightweight aluminium frames as well as ringlock components. Wide (250×135), narrow (250×75), folding (185×75) and compact (120×75) models offer working heights from 3 m up to 14 m; safe models allow guardrails to be installed from below with advance guardrails, while stairway models provide comfortable access with Z stairs. All towers are designed with braked castors and outriggers in accordance with TS EN 1004.

Key features

Designed according to TS EN 1004
3 m - 14 m working height

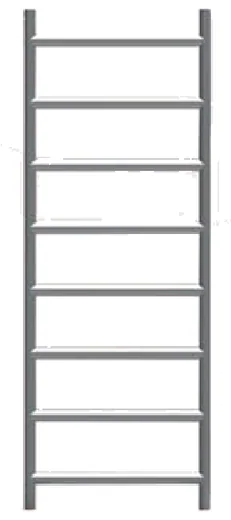

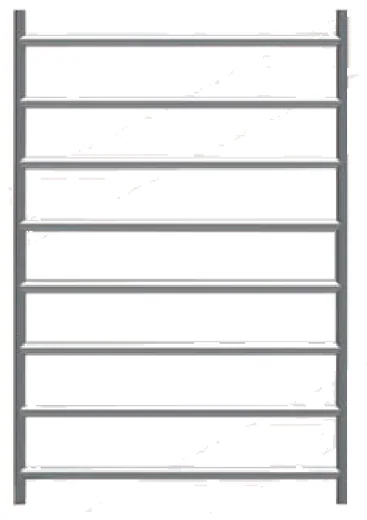

Lightweight aluminium frames, easy handling

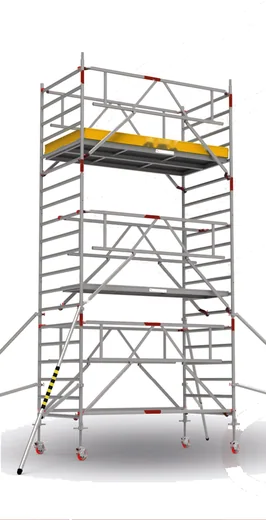

Models with advance guardrails

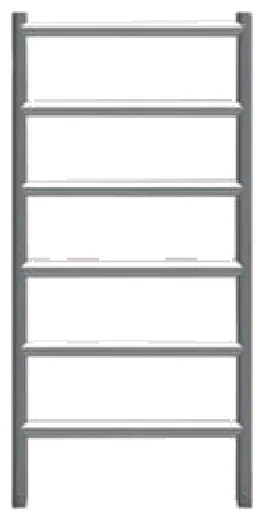

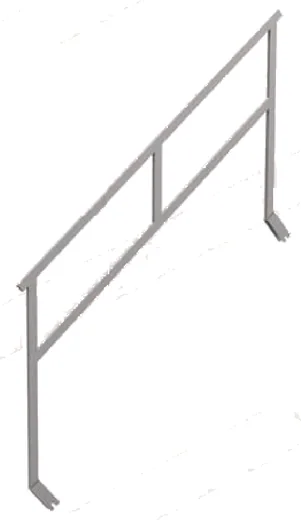

Stairway and folding models

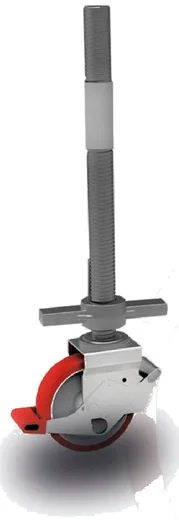

Adjustable braked castors and outriggers

Mobile Scaffolding Tower

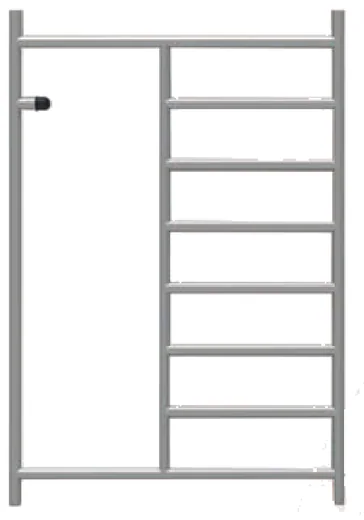

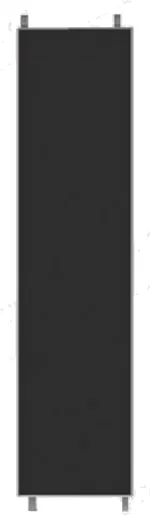

System components

Click a component for its size and weight table.

Mobile Scaffolding Tower

Erection sequence

The ground is checked; adjustable braked castors are fitted to the frames and locked.

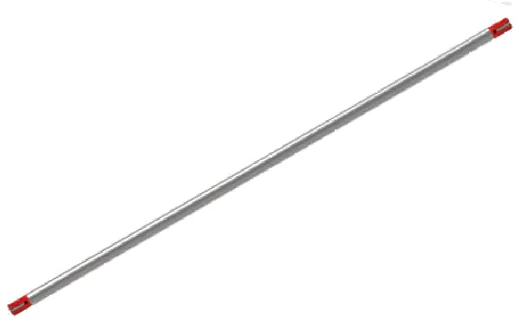

The first two frames are connected with horizontal and diagonal braces; the tower is levelled with the castor jacks.

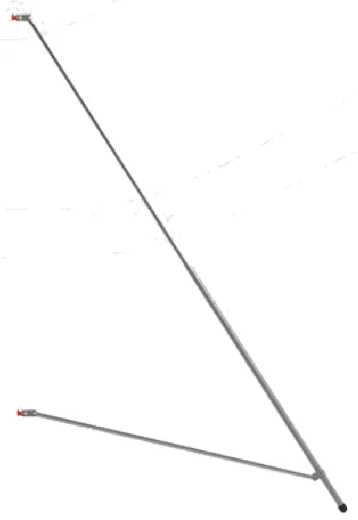

Outriggers are clamped to the tower and set on the ground.

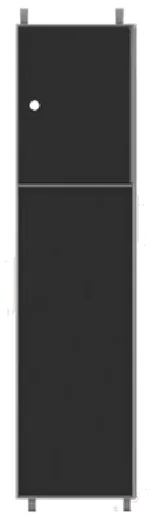

A hatch deck is placed at the first level; upper frames are secured with spring pins.

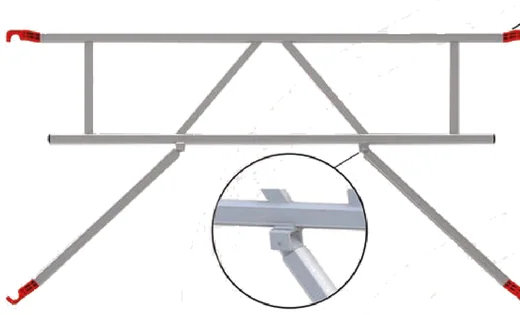

On safe models the advance guardrail is fitted from the level below before stepping onto the next deck.

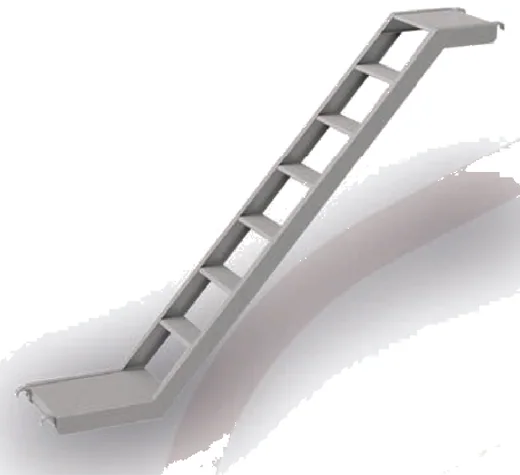

Frames, braces and decks are added level by level up to the required height; Z stairs are added on stairway models.

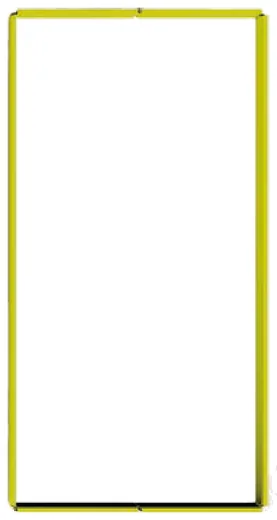

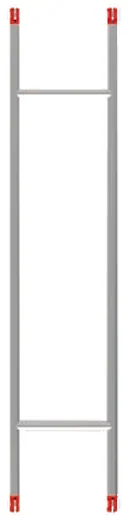

Guardrails and the toe board set are completed at the top deck.
Before use all brakes are locked and outriggers and level are checked.

Application notes

The tower must never be moved with persons or materials on it.
Platform height must not exceed 12 m indoors and 8 m outdoors (TS EN 1004).
Tower configuration and outrigger type must follow the height tables.
Not to be used outdoors in strong wind.
Erection, dismantling and modifications must only be carried out by trained, certified crews according to the approved design.
Damaged, deformed or incomplete components must never be used.
The ground must be level, firm and capable of carrying the loads.
The system must be inspected by a competent person after erection, at regular intervals, after any modification and after adverse weather.
Local regulations and occupational health & safety rules must be followed.
