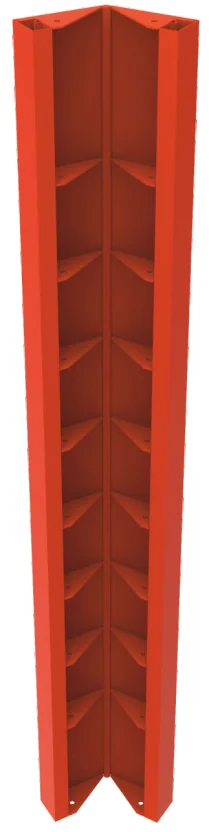

Heavy Duty Articulated Internal Corner

Ağır Tip Mafsallı İç Köşe

18 sizes
30×30×90 … 50×50×330
40.5–193 kg

The Heavy Duty Articulated Internal Corner is a component of the BLC Heavy Duty Panel Formwork System. It is available in 18 sizes (30×30×90 … 50×50×330) with a unit weight of 40.5–193 kg. Request a quote for purchase or rental, or see all sizes and weights in the system catalogue.

Code	Size (cm)	Weight (kg)
61130301	30×30×90	40.50
61130302	30×30×120	54.40
61130303	30×30×150	65.30
61130304	30×30×270	117.00
61130305	30×30×300	129.50
61130306	30×30×330	143.40
61130307	40×40×90	48.20
61130308	40×40×120	63.10
61130309	40×40×150	78.00
61130310	40×40×270	139.50
61130311	40×40×300	153.20
61130312	40×40×330	168.00
61130313	50×50×90	56.50
61130314	50×50×120	73.80
61130315	50×50×150	86.20
61130316	50×50×270	159.60
61130317	50×50×300	176.40
61130318	50×50×330	193.00
