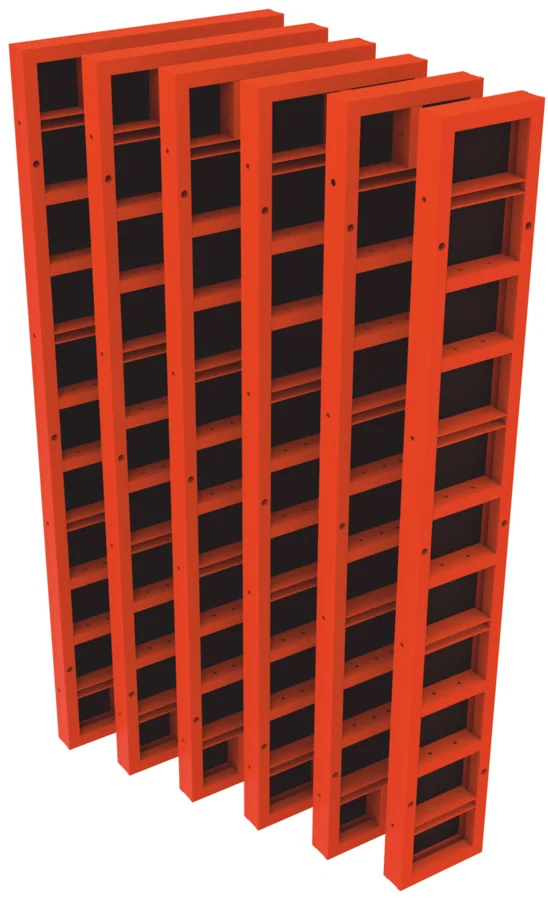

Heavy Duty Universal Panel

Ağır Tip Üniversal Panel

36 sizes
45×90 … 120×330
36.5–214.6 kg

The Heavy Duty Universal Panel is a component of the BLC Heavy Duty Panel Formwork System. It is available in 36 sizes (45×90 … 120×330) with a unit weight of 36.5–214.6 kg. Request a quote for purchase or rental, or see all sizes and weights in the system catalogue.

Code	Size (cm)	Weight (kg)
61130101	45×90	36.50
61130102	45×120	45.90
61130103	45×150	55.20
61130104	45×270	92.80
61130105	45×300	102.20
61130106	45×330	111.60
61130107	60×90	43.10
61130108	60×120	54.20
61130109	60×150	65.20
61130110	60×270	109.50
61130111	60×300	120.50
61130112	60×330	131.60
61130113	75×90	51.20
61130114	75×120	63.90
61130115	75×150	76.60
61130116	75×270	127.60
61130117	75×300	140.30
61130118	75×330	153.00
61130119	90×90	59.20
61130120	90×120	73.60
61130121	90×150	88.10
61130122	90×270	145.70
61130123	90×300	160.20
61130124	90×330	174.60
61130125	105×90	65.80
61130126	105×120	81.90
61130127	105×150	98.00
61130128	105×270	162.40
61130129	105×300	178.50
61130130	105×330	194.60
61130131	120×90	72.40
61130132	120×120	90.20
61130133	120×150	108.00
61130134	120×270	179.10
61130135	120×300	196.80
61130136	120×330	214.60
