Aluminium Slab Formwork System
Fast slab formwork with lightweight aluminium panels.
- 15 components
- 22 size options
ASF
About the Aluminium Slab Formwork System
BLC Aluminium Slab Formwork consists of lightweight aluminium panels, beams and telescopic props with drop heads. Thanks to the drop head, panels and beams are stripped early and moved to the next pour while the props remain in place, reducing the amount of formwork needed and shortening cycle times.
Key features
- Lightweight aluminium panels handled manually
- Early stripping with drop head
- Slab edge guardrails and steel wire fixing
- Few parts, fast assembly
Aluminium Slab Formwork System
System components
Click a component for its size and weight table.

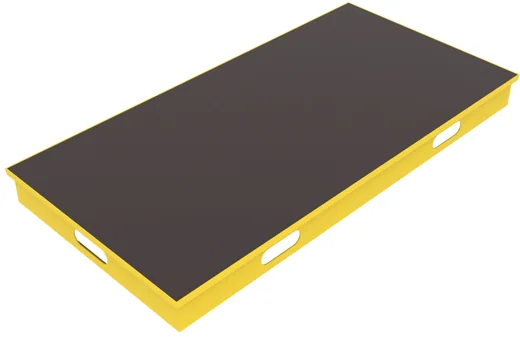

Aluminium Slab Panel
75×75 … 75×150 · 11.2–20.9 kg

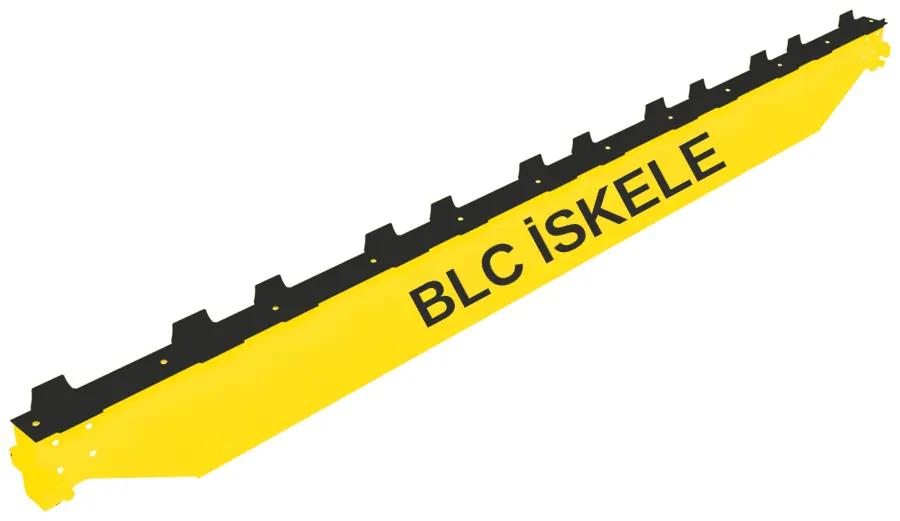

Aluminium Slab Beam
155–230 cm · 9–13 kg

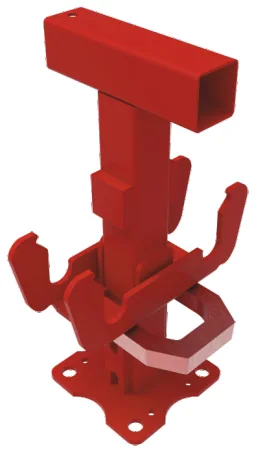

Drop Head
4 kg
Infill Head
1 kg

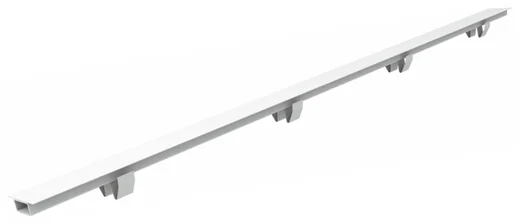

Infill Profile
75–150 cm · 1.8–3.6 kg

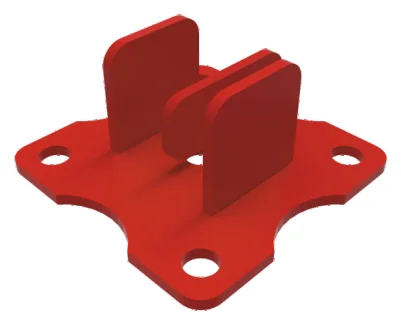

Beam Head
1 kg
Telescopic Prop EN 1065
B30 (Plus) … B40 (Plus) · 17.4–22 kg

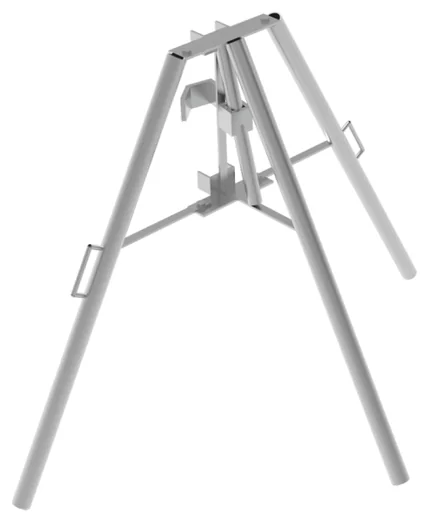

Tripod
9.5 kg

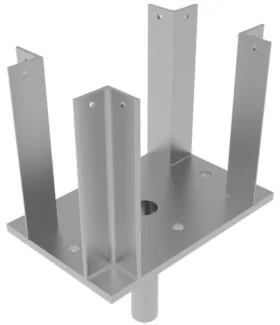

Head H20
2.8 kg

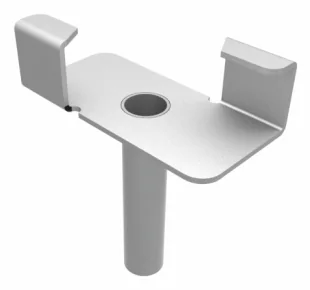

Short U Head
1 kg

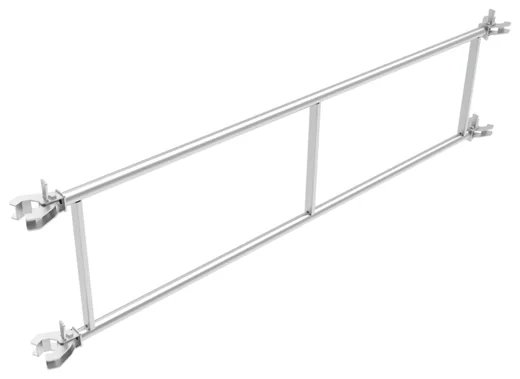

Prop Girder
155–230 cm · 12–16 kg

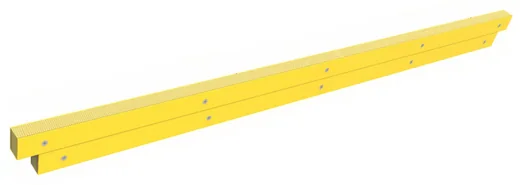

Spacing Beam
75–150 cm · 4.5–9 kg

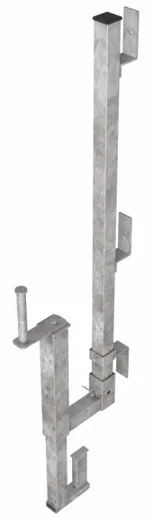

Slab Edge Guardrail
9 kg
Hook Plate
0.4 kg

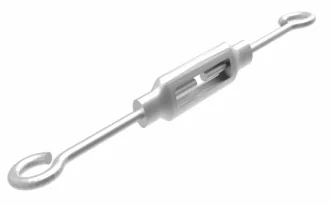

Steel Wire Tensioning Component
3 kg
Aluminium Slab Formwork System
Erection sequence

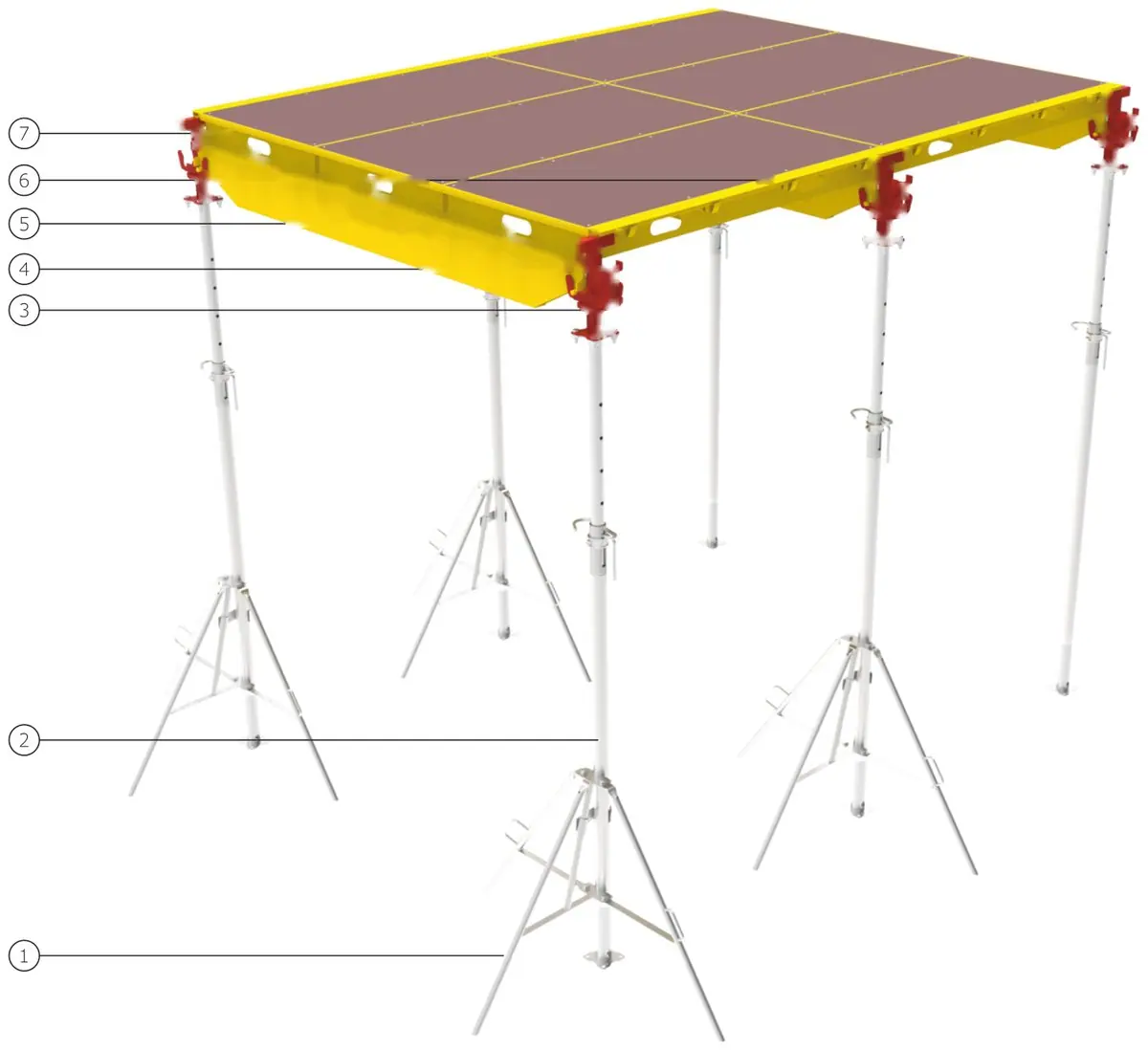

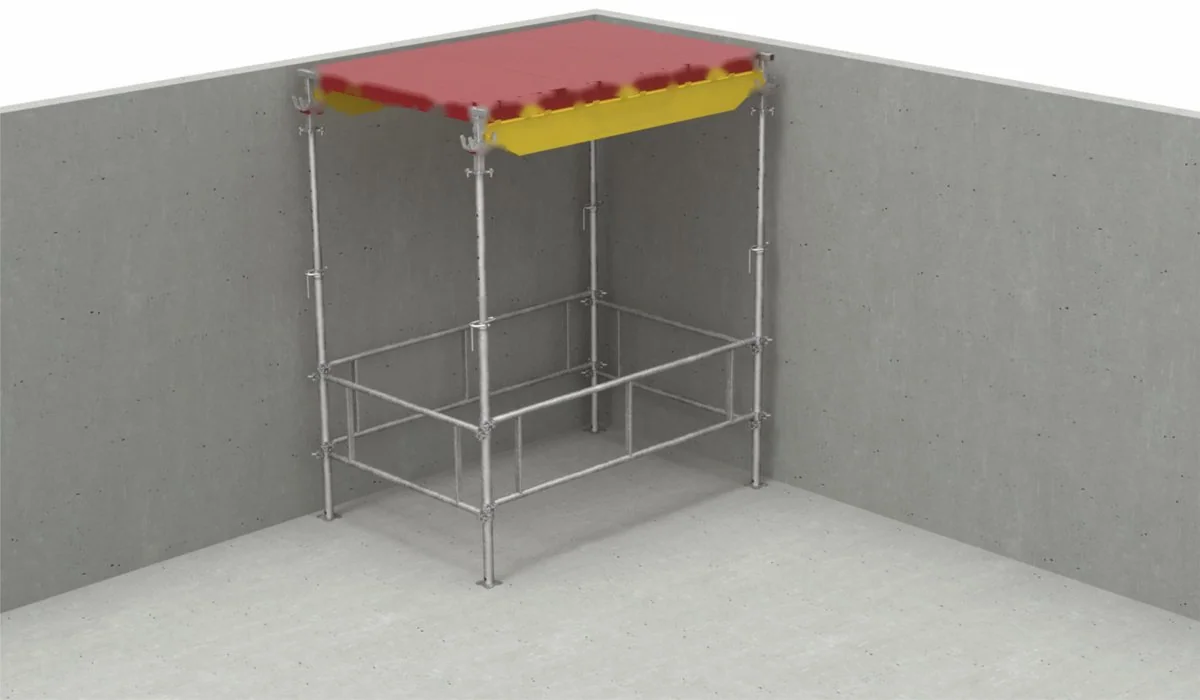

General view
- Tripod
- EN 1065 Telescopic Prop
- Drop Head
- Infill Head
- Aluminium Beam
- Infill Profile
- Aluminium Panel
- Drop heads are bolted to the telescopic props with M10 bolts and secured with the locking part.

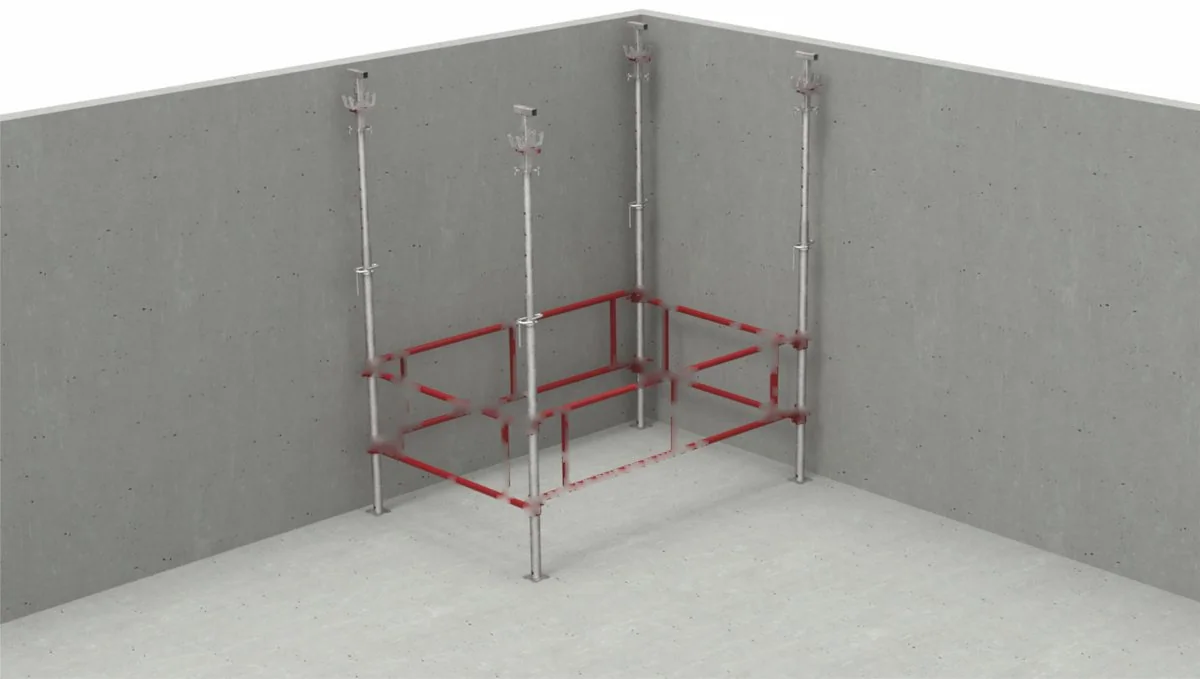

- The first bay is formed by connecting four props with prop connection beams.

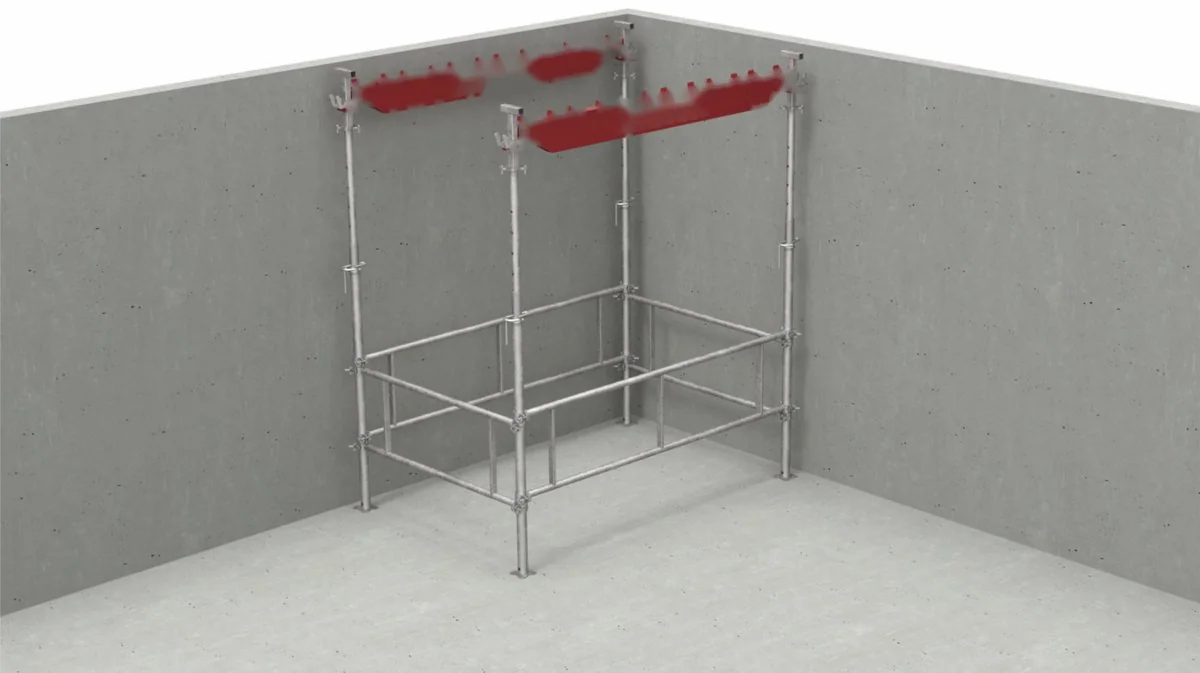

- Aluminium beams are set on the drop heads and the props are levelled.
- Aluminium panels are laid on the beams.

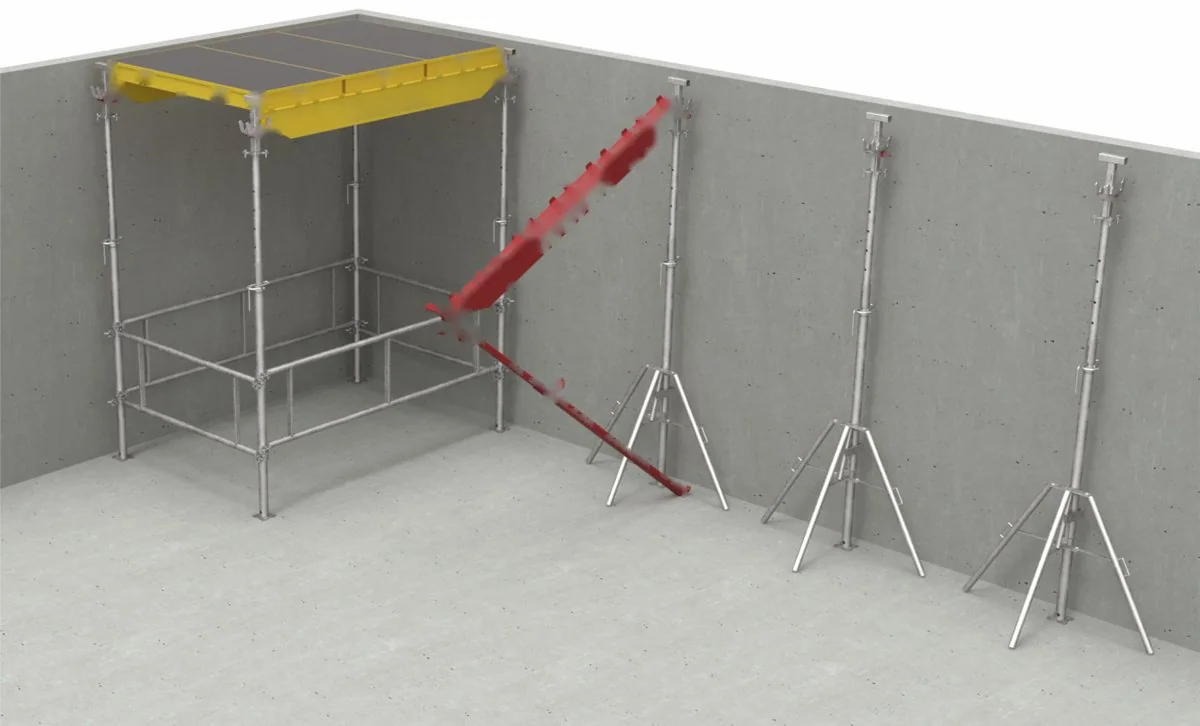

- Using the first bay as reference, new props are set up with tripods at approx. 150 cm spacing.
- Each new row is completed with beams and panels in the same way.
- When the slab is complete, gaps perpendicular to the beams are closed with infill profiles.
- After setting, the drop head is released; beams and panels are stripped while the props stay in place.
Application notes
- Erection, dismantling and modifications must only be carried out by trained, certified crews according to the approved design.
- Damaged, deformed or incomplete components must never be used.
- The ground must be level, firm and capable of carrying the loads.
- The system must be inspected by a competent person after erection, at regular intervals, after any modification and after adverse weather.
- Local regulations and occupational health & safety rules must be followed.
