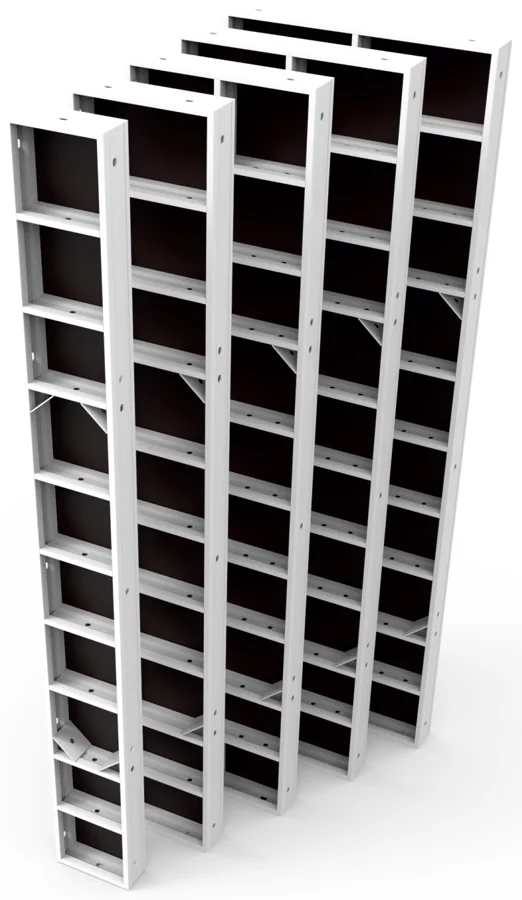

Aluminium Wall Formwork Panel

Alüminyum Perde Kalıp Paneli

60 sizes
20×90 … 90×300
9.7–62.2 kg

The Aluminium Wall Formwork Panel is a component of the BLC Aluminium Panel Formwork System. It is available in 60 sizes (20×90 … 90×300) with a unit weight of 9.7–62.2 kg. Request a quote for purchase or rental, or see all sizes and weights in the system catalogue.

Code	Size (cm)	Weight (kg)
61120101	20×90	9.70
61120102	25×90	10.60
61120103	30×90	11.50
61120104	35×90	12.40
61120105	40×90	13.20
61120106	45×90	14.10
61120107	50×90	15.00
61120108	55×90	15.80
61120109	60×90	17.50
61120110	65×90	18.40
61120111	70×90	19.30
61120112	75×90	20.10
61120113	80×90	21.00
61120114	85×90	21.90
61120115	90×90	22.70
61120116	20×150	14.60
61120117	25×150	15.90
61120118	30×150	17.30
61120119	35×150	18.60
61120120	40×150	19.80
61120121	45×150	21.20
61120122	50×150	22.50
61120123	55×150	23.80
61120124	60×150	26.00
61120125	65×150	27.30
61120126	70×150	28.60
61120127	75×150	30.00
61120128	80×150	31.20
61120129	85×150	32.50
61120130	90×150	33.90
61120131	20×270	24.50
61120132	25×270	26.70
61120133	30×270	29.00
61120134	35×270	31.30
61120135	40×270	33.50
61120136	45×270	35.70
61120137	50×270	37.90
61120138	55×270	40.10
61120139	60×270	43.20
61120140	65×270	45.50
61120141	70×270	47.70
61120142	75×270	49.90
61120143	80×270	52.10
61120144	85×270	54.30
61120145	90×270	56.60
61120146	20×300	26.90
61120147	25×300	29.40
61120148	30×300	31.90
61120149	35×300	34.30
61120150	40×300	36.70
61120151	45×300	39.20
61120152	50×300	41.70
61120153	55×300	44.20
61120154	60×300	47.40
61120155	65×300	49.90
61120156	70×300	52.30
61120157	75×300	54.80
61120158	80×300	57.20
61120159	85×300	59.70
61120160	90×300	62.20
