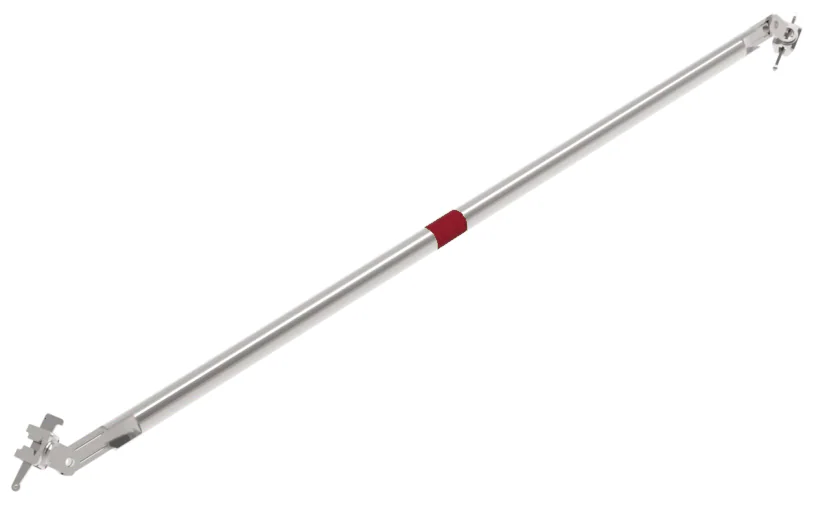

Diagonal

Çapraz

16 sizes
75×150 … 300×200
5.7–10.7 kg

The Diagonal is a component of the BLC Ringlock Scaffolding System. It is available in 16 sizes (75×150 … 300×200) with a unit weight of 5.7–10.7 kg. Request a quote for purchase or rental, or see all sizes and weights in the system catalogue.

Code	Size (cm)	Weight (kg)
61021601	75×150	5.70
61021602	111×150	6.20
61021603	125×150	6.50
61021604	137×150	6.70
61021605	150×150	6.90
61021606	200×150	7.90
61021607	250×150	8.90
61021608	300×150	10.00
61021609	75×200	6.90
61021610	111×200	7.30
61021611	125×200	7.50
61021612	137×200	7.80
61021613	150×200	8.00
61021614	200×200	8.80
61021615	250×200	9.70
61021616	300×200	10.70
