Ringlock Scaffolding System

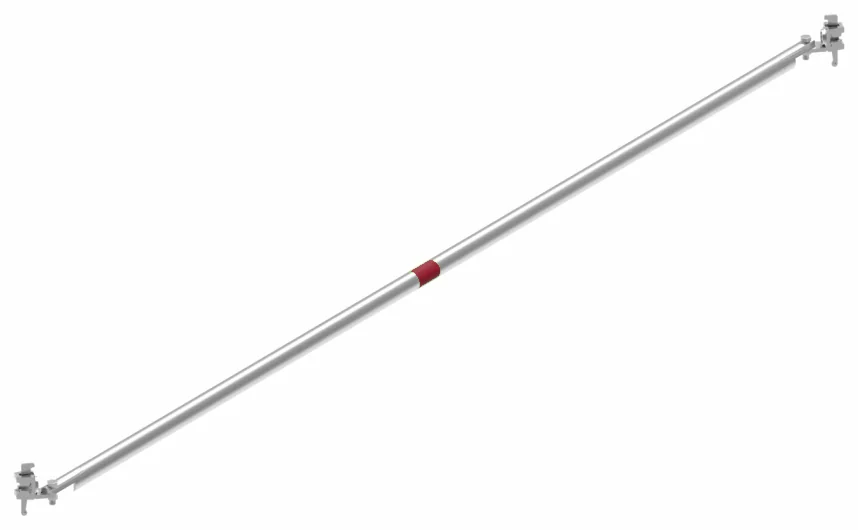

Base Diagonal
Alt Çapraz- 10 sizes
- 75×250 … 300×300
- 7.5–13 kg
The Base Diagonal is a component of the BLC Ringlock Scaffolding System. It is available in 10 sizes (75×250 … 300×300) with a unit weight of 7.5–13 kg. Request a quote for purchase or rental, or see all sizes and weights in the system catalogue.
| Code | Size (cm) | Weight (kg) |
|---|---|---|
| 61021701 | 75×250 | 7.50 |
| 61021702 | 111×250 | 7.80 |
| 61021703 | 125×250 | 7.90 |
| 61021704 | 137×250 | 8.10 |
| 61021705 | 150×250 | 8.30 |
| 61021706 | 200×250 | 9.00 |
| 61021707 | 250×250 | 9.90 |
| 61021708 | 300×250 | 13.00 |
| 61021709 | 200×200 | 8.00 |
| 61021710 | 300×300 | 11.80 |
