Heavy Duty Shoring System
Diagonal
Çapraz Bağlantı- 15 sizes
- 50-100 … 250-200
- 5.5–16 kg

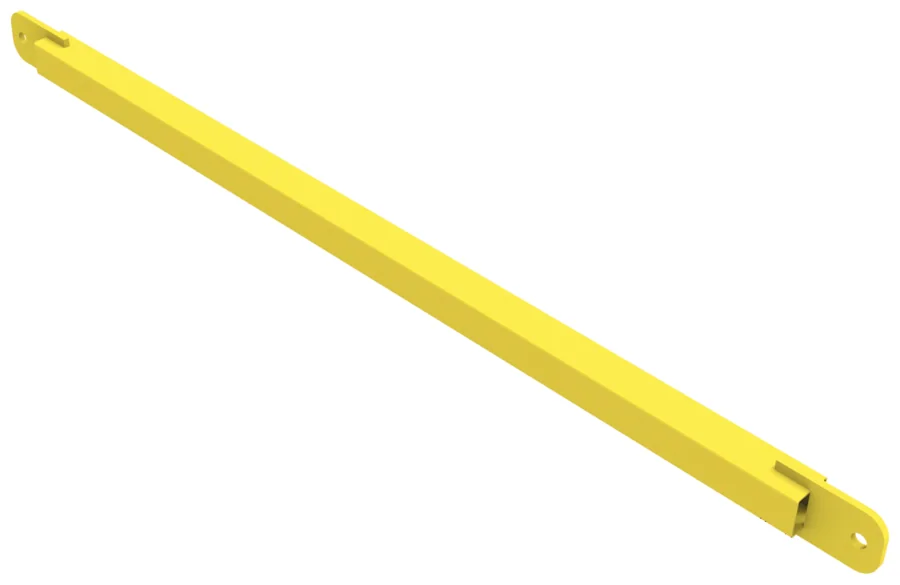

The Diagonal is a component of the BLC Heavy Duty Shoring System. It is available in 15 sizes (50-100 … 250-200) with a unit weight of 5.5–16 kg. Request a quote for purchase or rental, or see all sizes and weights in the system catalogue.
| Code | Size (cm) | Weight (kg) |
|---|---|---|
| 61100801 | 50-100 | 5.50 |
| 61100802 | 50-150 | 7.90 |
| 61100803 | 50-200 | 10.30 |
| 61100804 | 100-100 | 7.00 |
| 61100805 | 100-150 | 9.00 |
| 61100806 | 100-200 | 11.10 |
| 61100807 | 150-100 | 9.00 |
| 61100808 | 150-150 | 10.60 |
| 61100809 | 150-200 | 12.50 |
| 61100810 | 200-100 | 11.10 |
| 61100811 | 200-150 | 12.50 |
| 61100812 | 200-200 | 14.10 |
| 61100813 | 250-100 | 13.40 |
| 61100814 | 250-150 | 14.50 |
| 61100815 | 250-200 | 16.00 |
